Remove/install torsion bar on front axle - AR32.20-P-0300MB

MODEL 220.175 /178 with CODE (Z07) Top protection

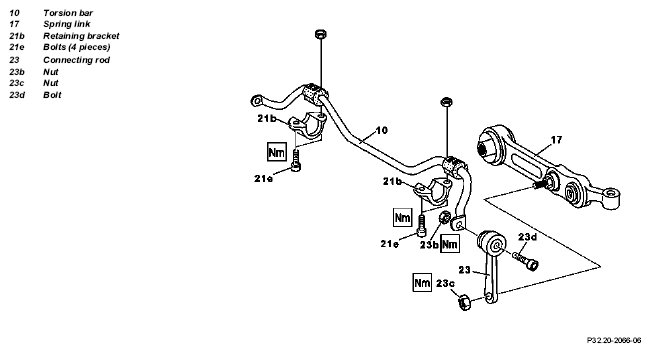

Fig 1: Identifying Torsion Bar On Front Axle Remove/Install Components

	Remove/Install
Installation	Replace self-locking nuts and bolts
1	Remove front pipe of fire extinguishing system	Only applies to vehicles with fire extinguishing system.
2	Unscrew nut (23c) and detach link rod (23) from spring link (17).	Installation:  Press link rod (23) onto the hexagon of the ball joint in the spring link (17) Inspect ball joint in spring link (17) for damage, replace ball joint if necessary.
			*BA32.20-P-1001-02H
3	Unscrew bolts (21e) and remove retaining bracket (21b).		*BA32.20-P-1003-02H
4	Take off torsion bar (10)	The rubber mounts are molded onto the torsion bar. If they are damaged or worn, replace the torsion bar.
5	Unscrew nut (23b) and remove link rod (23) from torsion bar (10).	Installation:  Only tighten nut (23b) when vehicle is in ready to drive condition. Counterhold bolt (23d) with shortened Allen wrench shop-made for this step. Knock in wheel if necessary. Check rubber mount of link rod (23) for damage, replace link rod if necessary.
			*BA32.20-P-1002-02H
6	Install in the reverse order

FRONT AXLE TORSION STRUT

Number	Designation		Model 220 except 220.083/084/087/183/184/187
BA32.20-P-1001-02H	Nut, linkage rod to track control arm	Nm	150
BA32.20-P-1002-02H	Nut, link rod to torsion bar	Nm	150
BA32.20-P-1003-02H	Bolt, torsion bar to front axle carrier	Nm	40
