Remove/Install |
|
|
 |
Risk of death
caused by vehicle slipping or toppling off of the lifting platform. |
Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. |
AS00.00-Z-0010-01A |
 |
Notes on self-locking nuts and bolts |
|
AH00.00-N-0001-01A |
 |
Installation
Tighten nuts and bolts of chassis components only in curb condition. |
|
|
| 1 |
Raise vehicle with lifting platform |
|
|
| 2 |
Remove front wheel |
|
|
 |
Remove and install wheels |
|
AP40.10-P-4050Z |
| 3 |

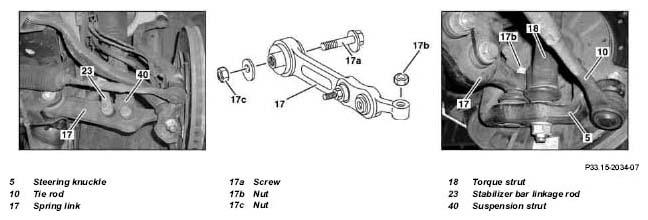

Detach torque strut (18) from steering knuckle (5) |
Installation:
Replace self-locking nut (18b) |
AR33.15-P-0160-01MB |
| |
|
 |
*BA33.20-P-1006-01F |
| 4 |
Detach tie rod (10) from steering knuckle (5) |
Installation:
Replace self-locking nut. |
AR46.40-P-0200-02I |
| 5 |
Detach suspension strut (40) from spring link (17) |
Front suspension strut to spring link |
*BA32.25-P-1006-04C |
| 6 |
Pry stabilizer bar-link rod (23) off spring control arm (17) |
Installation:
Press torsion bar link rod (23) onto hexagon of ball joint in the spring control arm (17). |
|
| |
|
|
*BA32.20-P-1001-02H |
| 7 |
Remove track control arm (17) from front subframe. |
Do not twist bolt (17a). When loosening the nut (17c) it is essential to counterhold the bolt (17a) otherwise the lock tabs for the camber adjustment will be sheared off in the rubber mount of the spring control arm.
Installation:
Screw nut (17c) onto bolt (17a), continuing until it seats on surface, but do not tighten, so that the rubber bushing on the track control arm can turn when the suspension is compressed. Do not tighten nut (17c) until in ready-to-drive condition. |
|
| |
|
|
*BA33.20-P-1001-01F |
| 8 |
Remove spring link (17) from front-axle carrier. |
Pull wheel carrier outwards. |
|
| 9 |
Unscrew nut (17b) of spring control arm on steering knuckle (5) |
|
*BA33.20-P-1005-01F |
| 10 |
Press spring link (17) out of steering knuckle (5) |
Puller |
Figure |
| |
|
Thrust piece |
Figure |
| |
|
Press |
Figure |
| 11 |
Remove spring control arm (17) from stabilizer bar link rod (23) and remove |
Check rubber mounts, joints and pivot bushings in spring control arm for damage and replace spring control arm if necessary. |
|
| 12 |
Install in the reverse order |
|
|
| 13 |
Perform chassis alignment |
|
AR40.20-P-0200MB |
