Remove/install covering on child seat cushion - AR91.20-P-1855M

MODEL 220.0 /1 with CODE (248) rear seat with integral child seat

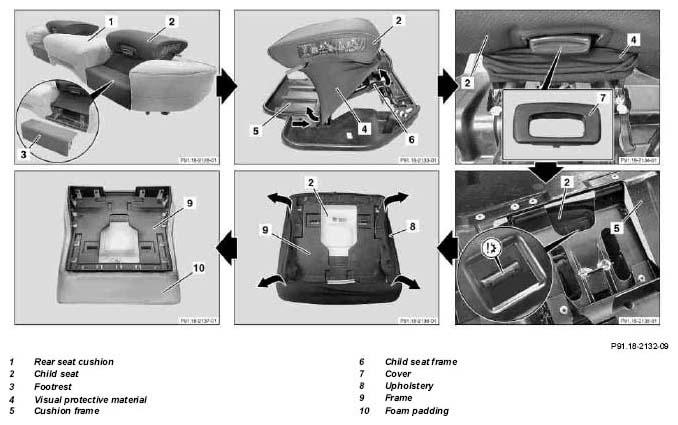

Fig 1: Identifying Covering On Child Seat Cushion Remove/Install Components - Model 220.0 /1

	Remove/Install
1	Remove rear seat cushion (1).	An assistant is needed.	AR91.12-P-1020MA
2	Let down child seat (2) and lock
3	Unclip foot rest (3)
4	Place rear seat cushion (1) with the covering facing downwards on a suitable base	Fold in child seat (2) again.
5	Press down cushion frame (5), pull out covering (8) at insert fold
6	Remove cushion frame (5) with child seat (2) from covering and foam padding of rear seat cushion (1)
7	Unclip visual protective material (4) at the rear of the cushion frame (5) (see arrow) and unhook the front from the child seat frame (6)
8	Pull off covering (7) from button
9	Remove tensioning wire from visual protective material (4) and draw visual protective material (4) over the child seat (2)
10	Turn over cushion frame (5) with child seat (2) and unclip the seat cushion of the child seat (2)	Compress the two lugs (see enlarged section) very carefully.
11	Remove the seat cushion of the child seat (2) from the child seat frame (6)	Push back and remove.
12	Unhook covering (8) from frame (9)	Installation:  Lugs are sharp-edged.
13	Pull covering (8) off frame (4) and foam padding (10)
14	Install in the reverse order
