Removing and installing left defroster flap actuator motor - AR83.30-P-2030M

MODEL 215, 220

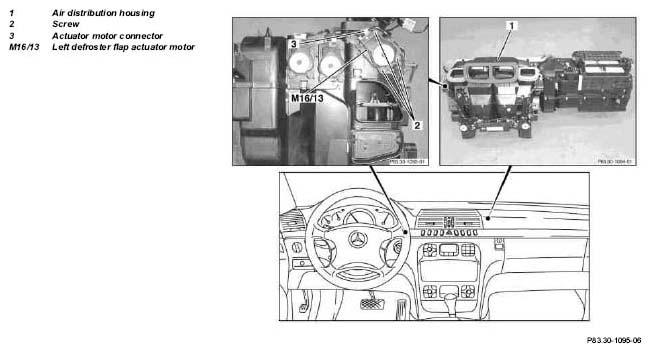

Fig 1: Identifying Left Defroster Flap Actuator Motor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

REVISIONS

14.10.98

Synchronization of actuator motors

Step 6, newly included

	Removal, installation
1	Remove cover below instrument panel on left	Model 215	AR68.10-P-1500N
		Model 220	AR68.10-P-1500M
2	Remove front left air nozzle air duct	Model 215 only
3	Disconnect actuator motor connector (3)	Connection and disconnection aid
4	Unscrew screws (2)
5	Pull off left defroster vent flap actuator motor (M16/13)
6	Install in opposite order
7	Perform synchronization of actuator motors	STAR diagnosis, menu point Actuation, synchronization of actuator motors
