Removing/installing the alternator regulator - AR15.40-P-5760I

ENGINES 113.960 /986 in MODEL 215

ENGINES 112.922 /944 /972 /975, 113.941 /948 /960 /966 /986 in MODEL 220

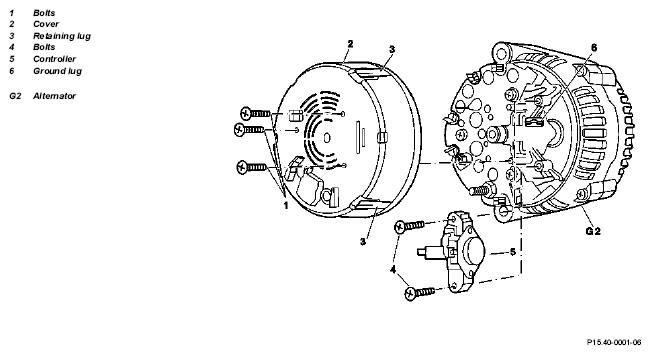

Fig 1: Identifying Alternator Regulator Remove/Install Components

G04840258

MODIFICATION NOTES

26.4.05	Partially remove alternator	Step 2.1
	Remove middle section of the lower engine compartment paneling - added	Step 2.2

	Removing/installing
	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/ rear-end door or sliding roof.	When moving components, ensure that no body parts or limbs are within the operating range of moving parts.	AS00.00-Z-0011-01A
1	Open engine hood and raise to vertical position		AR88.40-P-1000M
2.1	Remove alternator (G2)	Models 220.08, 220.18	AR15.40-P-5032I \
2.2	Remove middle part of lower engine compartment paneling	Models 215, 220 with engine 113	AR61.20-P-1105M
3	Unscrew bolts (1)
4	Unclip cover (2) and remove	Push apart retaining lugs (3).
5	Remove screws (4).
6	Remove regulator (5) towards the side	Installation: When inserting the governor (5) ensure, that the ground lug (6) sits against the governor (5).
7	Install in reverse order
