Remove/install camshaft Hall sensor - AR15.10-P-2000RVK

ENGINE 113.990 in MODELS 211.076 /276

ENGINE 113.991 in MODELS 215.374, 220.074 /174

Shown on engine 113.990

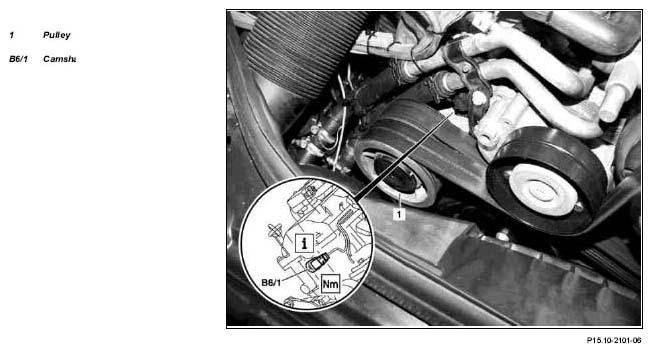

Fig 1: Identifying Camshaft Half Sensor Remove/Install - Shown On Engine 113.990

	Remove/install
1.1	Remove remote control key	Vehicle without Code (889) Keyless Go
1.2	Remove Keyless-Go cards from the vehicle and store outside of the transmitter range.	Vehicles with Keyless-Go code 889: Switch off engine.
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
2	Disconnect battery ground cable	Model 215, 220	AR54.10-P-0003I
	Notes on battery	All models	AH54.10-P-0001-01A
3	Remove front engine compartment paneling
4	Remove supercharger poly-V-belt		AR13.21-P-1202RVK
5	Remove poly-V-belt	Models 215, 220	AR13.22-P-1202R
		Models 211.076/276	AR13.22-P-1202RV
6	Remove cap of guide pulley (1)	Carefully pry off the cap with a flat tip screwdriver to avoid damaging the guide pulley (1).
7	Unscrew bolt of guide pulley (1)		*BA13.25-P-1008-01D
8	Remove guide pulley (1)
9	Detach the electrical connector from the camshaft Hall sensor (B6/1)
10	Remove camshaft Hall sensor (B6/1)	Installation:  Install new O-ring.
			*BA15.10-P-1002-03A
11	Install in the reverse order
12	Connect STAR DIAGNOSIS, read out and erase fault memory
	Connect up STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A

BELT TENSIONING DEVICE

POSITION SENSOR
