Removing and installing crankshaft position sensor - AR15.12-P-2133L

ENGINE 137.970 in MODEL 215.378, 220.178

Shown on engine 137 in model 215

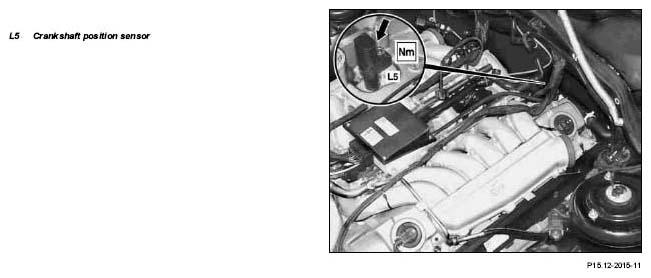

Fig 1: Identifying Crankshaft Position Sensor - Shown On Engine 137 In Model 215

	Removing, installing
1	Remove air cleaner		AR09.10-P-1050L
2	Remove intake manifold	Suspend intake manifold complete with inlet connection, intake air pipes and fuel rail at hood. The intake manifold must not be disassembled.	AR09.20-P-1310L
3	Unplug connector (arrow) of electrical connection of crankshaft position sensor (L5) hen
4	Remove crankshaft position sensor (L5)		*BA15.10-P-1001-03B
5	Install in the reverse order
