Remove/install crankshaft position sensor - AR15.12-P-2133H
ENGINE 275 in MODEL 215, 216, 220, 221, 230
ENGINE 285 in MODEL 240
Shown on engine 285
  |
Remove/install |
|
|
 |
Risk of injury
caused by fingers being pinched or crushed
when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. |
Keep body parts and limbs well clear of moving parts. |
AS00.00-Z-0011-01A |
| 1 |
Remove right air filter housing. |
Model 215, 216, 220, 221, 230 |
AR09.10-P-1150LA |
| |
|
Model 240 |
AR09.10-P-1150H |
| 2 |

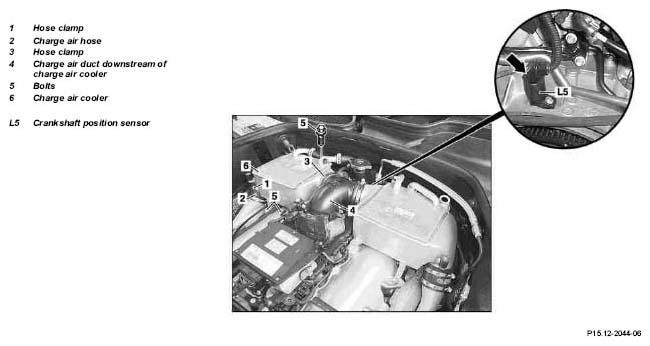

Loosen hose clamps (1, 3) at charge air hose (2) and at charge air duct (4) downstream of charge air cooler (6) |
Tighten hose clamps (1, 3) using prescribed torque so that charge air duct (6) can disconnect from engine charge air ducts (4) in the event of an accident. |
|
| |
|
 |
*BA09.41-P-1002-02B |
| |
|
|
*BA09.41-P-1003-02B |
| 3 |
Remove screws (5) |
Do not remove coolant hoses to charge air cooler (6): |
|
| |
|
|
*BA09.41-P-1001-03A |
| 4 |
Lift charge air cooler (6) from charge air hose (2) and remove from charge air duct (4) downstream of charge air cooler (6) |
Do not damage coolant hoses running to charge air coolers (6). |
|
| 5 |
Unplug connector (arrow) from crankshaft position sensor (L5) |
|
|
| 6 |
Remove crankshaft position sensor (L5) |
If the crankshaft position sensor (L5) is replaced, an initialization must be conducted with Star Diagnosis in the menu item of the control unit adaptation. |
|
| |
|
|
*BA15.10-P-1001-03D |
| 7 |
Install in the reverse order |
|
|
| 8 |
Read out fault memory and erase if required |
 |
*WH58.30-Z-1048-13A |
 |
Connect STAR DIAGNOSIS and read out fault memory |
|
AD00.00-P-2000-04A |
CHARGE AIR DUCT
| Number |
Designation |
Engine 275, 285 |
| BA09.41-P-1002-02B |
Hose clamp, charge air hose to engine charge air channel and at charge air cooler |
Nm |
3 |
| BA09.41-P-1003-02B |
Hose clamp, charge air channel as required charge air cooler to charge air cooler and at electronic accelerator actuator |
Nm |
3 |
CHARGE AIR COOLER
| Number |
Designation |
Engine 275, 285 |
| BA09.41-P-1001-03A |
Bolt, charge air cooler to cylinder head cover |
Nm |
8 |
POSITION SENSOR
| Number |
Designation |
Engine 271, 275, 285 |
| BA15.10-P-1001-03D |
Crankshaft position sensor to engine block |
Nm |
8 |
COMMERCIALLY AVAILABLE TOOLS
| Number |
Designation |
| WH58.30-Z-1048-13A |
STAR DIAGNOSIS diagnosis system, Compact Passenger Car |
6511 1801 00 |
