Remove/install right engine support - AR22.10-P-4340PW

ENGINE 112 in MODEL 203.081 /084 /281 /284, 220.087 /187

ENGINE 272.970 in MODELS 203.087 /287

ENGINE 272.941 in MODELS 203.092 /292

ENGINE 113 in MODELS 220.083 /084 /183 /184

Shown on model 203

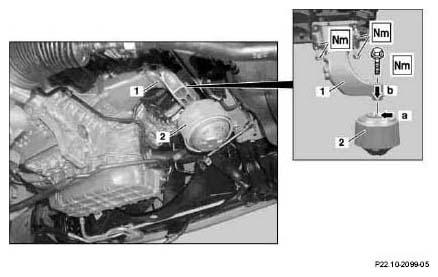

Fig 1: Identifying Right Engine Support Remove/Install Components - Shown On Model 203

MODIFICATION NOTES

21.2.06

Bolt, engine support to crankcase

Engine 272 in model 203 with 4-MATIC

	Remove/install
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
	Risk of death caused by vehicle slipping or toppling off the lifting platform.	Align vehicle between columns of lifting platform and position four support plates at lifting platform support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Open engine hood	Model 203	AR88.40-P-1000P
		Model 220	AR88.40-P-1000M
2	Raise vehicle with lifting platform	Model 203 Model 220	AR00.60-P-1000P
3	Remove front axle gear	Model 203	AR33.30-P-0525P
		Model 220	AR33.30-P-0525I
4	Remove upper engine mount (2) from engine support (1)	Installation: The anti-twist lock () on engine mount (2) must latch into retaining groove in engine support (1).
		Engine 112.975, 113.948/966 in model 220	*BA22.10-P-1004-01L
		Engine 112.916/953 in model 203	*BA22.10-P-1004-01R
		Engine 272 in model 203 with 4-MATIC	*BA22.10-P-1002-01S
5	Remove engine support (1) from crankcase	Engine 112.975, 113.948/966 in model 220	*BA22.10-P-1005-01L
		Engine 112.916/953 in model 203	*BA22.10-P-1005-01R
		Engine 272 in model 203 with 4-MATIC	*BA22.10-P-1001-02A
6	Install in the reverse order

ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation			Engine 112.975, 113.948/966 in model 220
BA22.10-P-1004-01L	Bolt, front engine mount to engine support		Nm	50
BA22.10-P-1005-01L	Bolt, engine support to crankcase	Stage 1	Nm	20
BA22.10-P-1005-01L	Bolt, engine support to crankcase	Stage 2	∠ °	90

ENGINE SUPPORT (ON ENGINE SIDE)

Number	Designation			Engine 272
BA22.10-P-1001-02A	Bolt, engine support to crankcase	Stage 1	Nm	20
BA22.10-P-1001-02A	Bolt, engine support to crankcase	Stage 2	∠ °	90

ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation			Engine 112.916/ 953 in model 203
BA22.10-P-1004-01R	Bolt, engine mount to engine carrier		Nm	50
BA22.10-P-1005-01R	Bolt, engine support to crankcase	Stage 1	Nm	20
BA22.10-P-1005-01R	Bolt, engine support to crankcase	Stage 2	∠ °	60

ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Engine 272 in model 203 with 4-MATIC
BA22.10-P-1002-01S	Bolt, front engine mount to engine support	Nm	50
