Remove/install belt pulley/vibration damper - AR03.30-P-1600RVK

ENGINE 113.990 in MODELS 211.076 /276

ENGINE 113.991 in MODELS 215.374, 220.074 /174

ENGINE 113.992 in MODEL 230.474

ENGINE 113.995 in MODEL 230.472

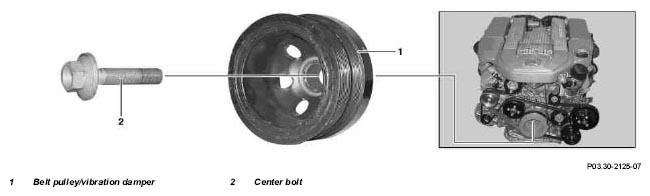

Fig 1: Identifying Belt Pulley/Vibration Damper And Center Bolt

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Remove front engine cover
2	Remove fan shroud	Model 211	AR20.40-P-6800TC
		Model 215, 220, 230	AR20.40-P-6800AB
3	Remove poly-V-belt on supercharger		AR13.21-P-1202RVK
4	Remove poly-V-belt	Model 211	AR13.22-P-1202RV
		Model 215, 220, 230	AR13.22-P-1202R
5	Remove the center bolt (2)	Installation:  The center bolt (2) should always be replaced. Installation:  Make two markings on the counterholder to aid applying the tightening angle. Use extension.
			*BA03.30-P-1001-01D
		Torque wrench	Figure
		Counterholder	Fig 3
6	Detach the belt pulley/vibration damper (1) from the crankshaft	Installation:  The groove on the belt pulley/vibration damper (1) must engage in the feather key of the crankshaft.
	Checking
7	Check the tread of the crankshaft radial sealing ring at the hub of the belt pulley/ vibration damper (1)	Check for scoring and galling; if necessary: ↓ Replace belt pulley/vibration damper (1)
8.1	Replace front crankshaft radial sealing ring	When replacing the belt pulley/vibration damper (1) or in the event of leaks at the crankshaft radial sealing ring.	AR03.20-P-3000RVK
9	Install in the reverse order
10	Check engine oil level and replenish oil if necessary	Model 211, 230	AR18.00-P-3035-01O
		Model 215, 220	AR18.00-P-3035-01DA
	Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the running engine	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts.	AS00.00-Z-0005-01A
11	Conduct engine test run and check the engine for leaks	In the event of oil loss determine and eliminate cause, otherwise malfunctions, transmission damage, and serious environmental pollution may occur.

FLYWHEEL, DRIVEN PLATE, VIBRATION DAMPER, STARTER RING GEAR

Fig 2: Identifying Torque Wrench (000 589 10 99 01)

Fig 3: Identifying Counterholder (230 589 00 40 00)
