Remove/install end cover - AR01.40-P-8913L

ENGINE 137.970 in MODEL 215.378, 220.178

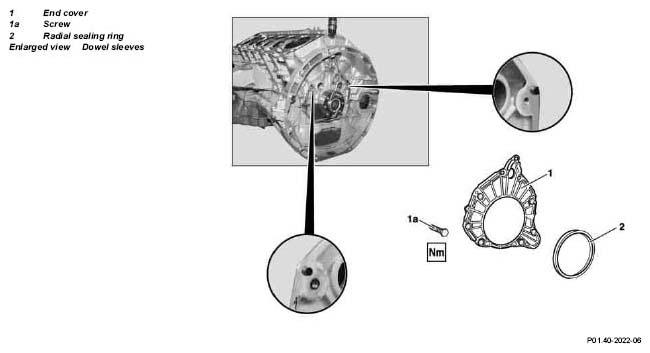

Fig 1: Identifying End Cover Remove/Install Components

	Remove/Install
1	Remove automatic transmission		AR27.10-P-0500I
2	Dismount flywheel/drive plate		AR03.30-P-8001C
3	Remove end cover (1)	Pry off end cover (1) carefully at both points (magnifying lens) with a slanted screwdriver. The crankshaft radial sealing ring (2) must always be replaced when the end cover (1) is removed. Observe fitted sleeves (magnifying lens) when pressing on end cover (1)! End cover (1) is made out of magnesium alloy. Installation:  Observe application of sealing compound to end cover (1):↓
		Information on application of sealant to end cover of crankcase	AH01.40-P-1000-04A
			Figure
			Figure
			*BA01.40-P-1004-01C
		Make sure that no sealing compound enters the oil ducts, otherwise this can lead to engine damage.
		Sealant	*BR00.45-Z-1013-01A
4	Replace rear crankshaft radial sealing ring (2)	The rear crankshaft radial sealing ring (2) must only be removed once the end cover (1) has been removed. Installation:  Circumference and lip of crankshaft radial sealing ring (2) as well as counter tread on the crankshaft must be free of oil and grease.	AR03.20-P-3063L
5	Install in the reverse order	Before installing transmission, inspect for oil leaks!

CRANKCASE, TIMING CASE COVER, END COVER

Number	Designation			Engine 137
BA01.40-P-1004-01C	End cover screw	Thread not pretapped	Nm	-
		Thread pretapped	Nm	-8

Fig 2: Identifying External Torx Set (001 589 76 09 00)

Fig 3: Identifying Sealant Gun (112 589 00 25 00)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1013-01A	Sealant	A 003 989 98 20
