Measure cylinder bores - AR01.40-P-9202AV
ENGINE 113 in MODELS 129, 163, 202, 203, 208, 209, 210, 211, 215, 220, 230
ENGINES 112 /945, 113.962 /982
| Figure item, etc. | Work instructions | ||
|---|---|---|---|

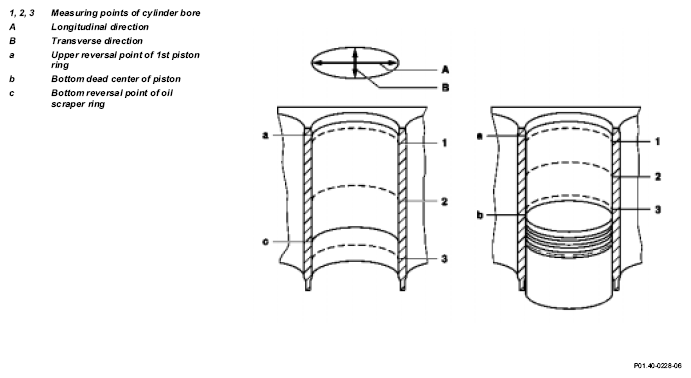

| Cylinder bore | Measure diameter of the cleaned cylinder bores with an internal measuring instrument in the longitudinal and transverse directions. | ||
| 1,2,3 | Cylinder bore diameter at the measuring points | Measure | |
| Fig 2 | |||
| *WH58.30-Z-1001-12A | |||
| *WH58.30-Z-1011-12A | |||
| Cylinder diameter code letter X | *BE01.40-P-1001-01F | ||
| Cylinder diameter code letter ⓧ | *BE01.40-P-1001-01F | ||
| Repair size | *BE01.40-P-1001-01F |
CHECK VALUES FOR CYLINDER BORE
| Number | Designation | Engines 113.960/961/ 962/963/964/ 965/967/968/ 971/980/981/ 982/984/987/ 988/989/990/ 991/992/993/ 995 | ||
|---|---|---|---|---|
| BE01.40-P-1001-01F | Cylinder dia. | Standard Marking X | mm | 97.000 to 97.015 |
| Auxiliary stage Marking ⓧ | mm | 97.050 to 97.065 | ||
| Repair size | mm | 97.250 to 97.265 | ||
CHECK VALUES FOR CYLINDER BORE
| Number | Designation | Engine 112.910/ 911 | Engines 112.913/920/921/922/ 923/940/941/942/943/ 944/945/949 113.940/941/942/943/ 945 | ||
|---|---|---|---|---|---|
| BE01.40-P-1001-01F | Cylinder dia. | Standard Marking X | mm | 83.200...83.215 | 89.900...89.915 |
| Auxiliary stage Marking ⓧ | mm | 83.250...83.265 | 89.950 to 83.265 | ||
| Repair size | mm | 83.450 to 83.465 | 90.150...90.165 | ||
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1001-12A | Quick calipers for internal measurements |
| WH58.30-Z-1011-12A | Internal measuring instrument |
