Check oil level - AR18.00-P-3035-01IW

OIL LEVEL CHECK

Number	Designation			Engine 113.969 in model 211 with 4-Matic, Engine 113.948/966 in model 220 with 4-Matic
BF18.00-P-1001-03J	Oil level	Maximum	mm	120
BF18.00-P-1001-03J	Oil level	Minimum	mm	98
BF18.00-P-1002-03J	Oil dipstick indication from 87 mm to 117 mm (oil level too low)	87 mm	Replenished oil quantity in liters	+2.6
		89 mm	Replenished oil quantity in liters	+2.5
		91 mm	Replenished oil quantity in liters	+2.4
		93 mm	Replenished oil quantity in liters	+2.3
		95 mm	Replenished oil quantity in liters	+2.2
		97 mm	Replenished oil quantity in liters	+2.1
		99 mm	Replenished oil quantity in liters	+1.9
		101 mm	Replenished oil quantity in liters	+1.8
		103 mm	Replenished oil quantity in liters	+1.6
		105 mm	Replenished oil quantity in liters	+1.4
		107 mm	Replenished oil quantity in liters	+1.2
		109 mm	Replenished oil quantity in liters	+1.1
		111 mm	Replenished oil quantity in liters	+0.9
		113 mm	Replenished oil quantity in liters	+0.8
		115 mm	Replenished oil quantity in liters	+0.6
		117 mm	Replenished oil quantity in liters	+0.4
BF18.00-P-1003-03J	Oil dipstick indication from 119 mm to 121 mm (oil level correct)	119 mm	Oil quantity in liters	0.0
		120 mm	Oil quantity in liters	0.0
		121 mm	Oil quantity in liters	0.0
BF18.00-P-1004-03J	Oil dipstick indication from 123 mm to 129 mm (oil level too high)	123 mm	Extracted oil quantity in liters	-0.3
		125 mm	Extracted oil quantity in liters	-0.5
		127 mm	Extracted oil quantity in liters	-0.7
		129 mm	Extracted oil quantity in liters	-0.9

Fig 1: Identifying Measuring Rod (120 589 07 21 00)

3.1 Unplug plug (1) of oil dipstick guide tube (2).
For vehicles with stop plug (1).
3.2 Pull oil dipstick (3) out of oil dipstick guide tube (2).
For vehicles with an oil dipstick (3).

Shown on model 203 with engine 112.912

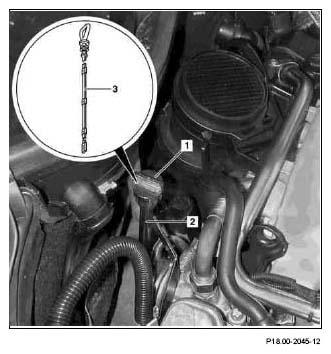

Fig 2: Identifying Unplug Plug And Oil Dipstick Guide Tube - Shown On Model 203 With Engine 112.912
4 Lead the dipstick into the oil dipstick guide tube (2) until its tip is in the engine oil pan.
The collar of the dipstick grip end does not sit on the oil dipstick guide tube (2).

Leave there for at least a 3 seconds dwell time.

Do not bend the dipstick . The dipstick must be pushed and guided according to the form of the oil dipstick guide tube (2).
5 Read off engine oil level on the dipstick .
6 Establish the oil replenishment quantity from the oil level table.
7 Adjust engine oil level correctly, if required.
8.1 Place plug (1) onto oil dipstick guide tube (2).
For vehicles with stop plug (1).
8.2 Insert oil dipstick (3) into the oil dipstick guide tube (2).
For vehicles with an oil dipstick (3).
