Removing and installing rear door lock - AR72.12-P-2510MC

MODELS 220.175 /178 with CODE (Z04) Light armoring

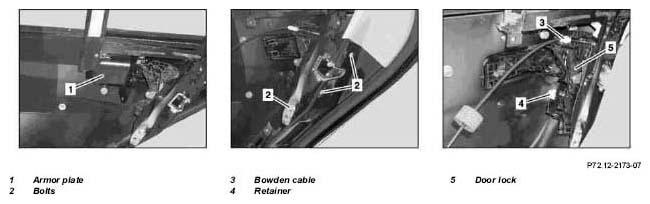

Fig 1: Identifying Rear Door Lock Remove/Install Components - Light Armoring

	Remove/install
1	Remove outer rear door handle		AR72.12-P-2410MB
		Installation:  Check clearance by pulling the door handle until there is noticeable resistance. Adjust if necessary ↓ With retainer (4) open, press release rod upward until there is noticeable resistance. Then close the retainer (4) again.	*BE72.12-P-1001-01B
2	Remove inner door panel		AR72.12-P-0104MC
3	Remove armor plate (1)		*BA72.12-P-1002-01DA
4	Unscrew screws (2)		*BA72.12-P-1007-01D
5	Detach, remove Bowden cable (3) from door lock
6	Open retainer (4)
7	Remove door lock (5)	Installation:  Guide release rod of bearing bracket into the retainer (4).
8	Install in the reverse order

INSPECTION AND SETTING DATA OF REAR DOOR

Number	Designation		Model 220
BE72.12-P-1001-01B	Gap	mm	2 ± 1

REAR DOOR TIGHTENING TORQUE

Number	Designation		Model 220
BA72.12-P-1007-01D	Screw at door lock	Nm	10

REAR DOOR TIGHTENING TORQUE

Number	Designation		MODEL 220 with CODE Z04
BA72.12-P-1002-01DA	Bolt for door lock armor plate to door	Nm	23
