Stamping vehicle identification number - AR60.00-P-0800-02M

Fig 1: Identifying Set Of Steel Stamping Numbers (140 589 26 63 00)

Fig 2: Identifying Set Of Steel Stamping Letters (140 589 26 63 05)

Fig 3: Identifying Number Punch Guide (220 589 00 63 00)

Fig 4: Identifying Number Punch Guide Anvil (215 589 00 63 00)

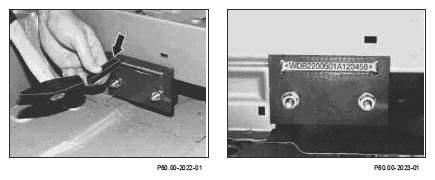

1. Start with "Mercedes star" punch at left of window plate (arrow).

   The tip of the Mercedes star should point up.

2. Then position "W" punch with left edge at first increment mark in window plate and punch.
3. Move forward one increment mark on the scale in the window plate with each subsequent number punch until the complete vehicle identification number and then the Mercedes star have been punched into the cross member.
   Fig 5: Locating Mercedes Star Punch On Window Plate
