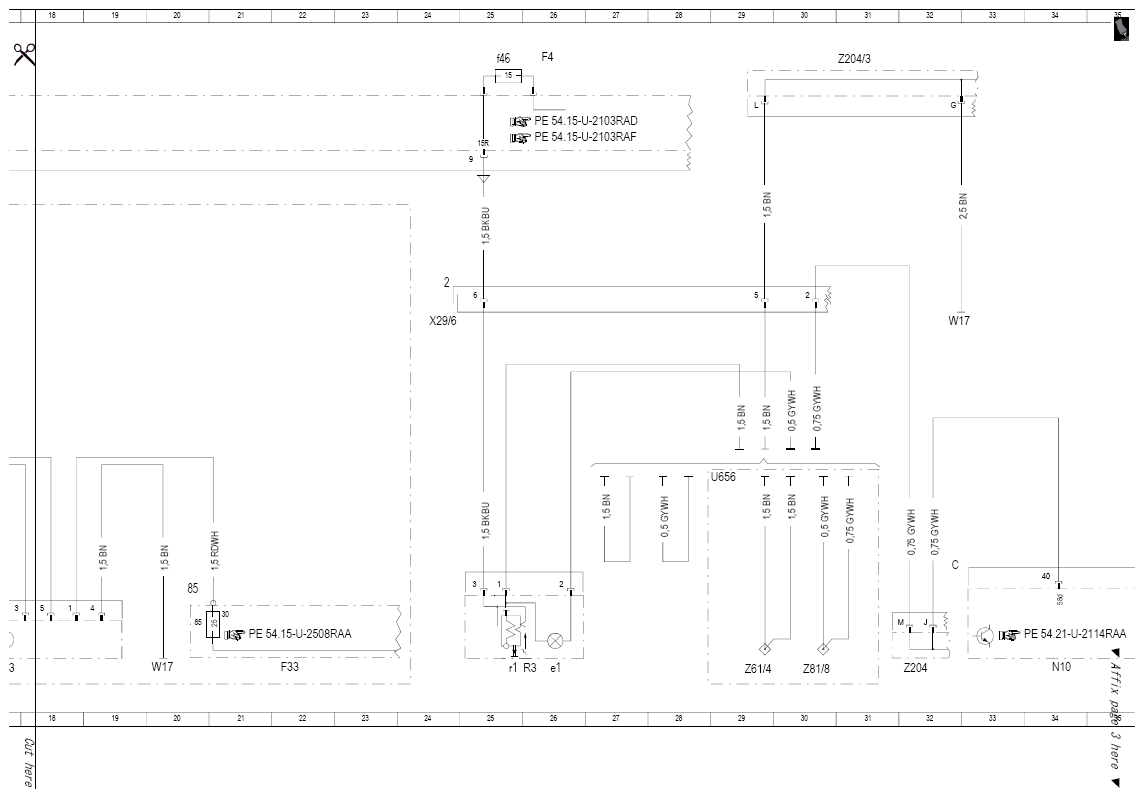

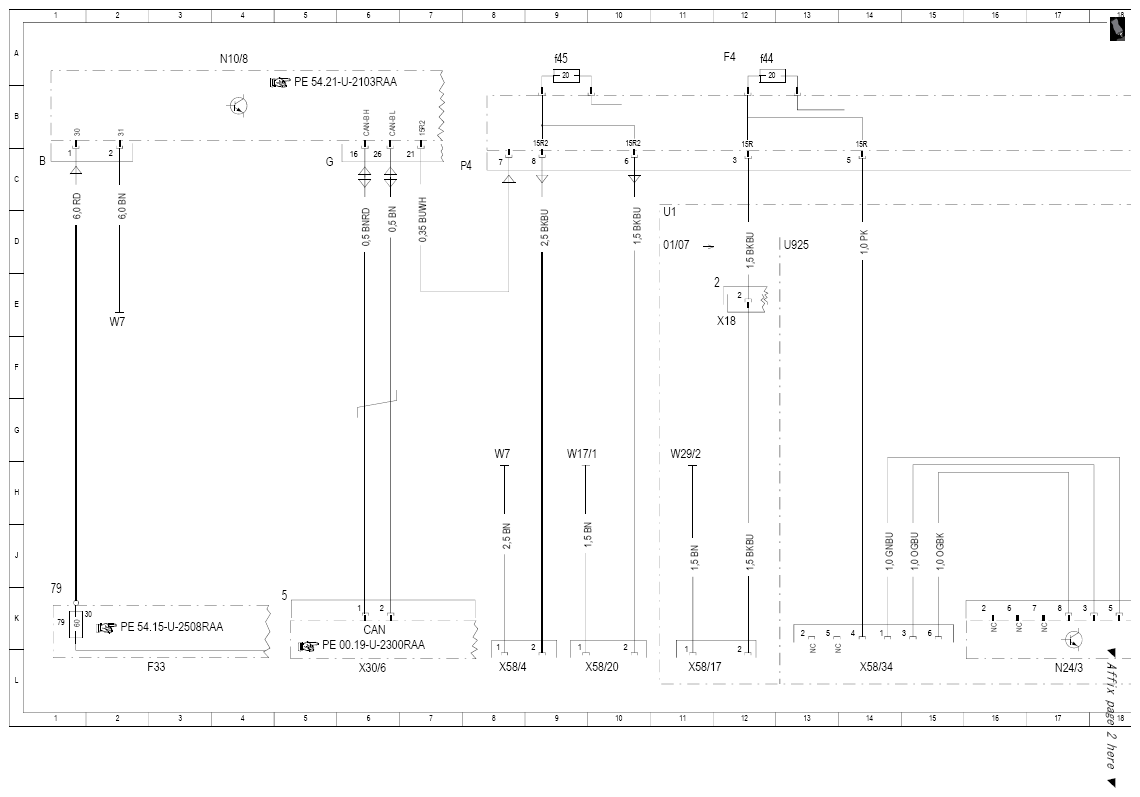

| F33 |
Battery compartment prefuse box |
2 L |
| F33 |
Battery compartment prefuse box |
22 L |
| F33f79 |
Fuse 79 |
1 K |
| F33f85 |
Fuse 85 |
20 K |
| F4 |
Load compartment fuse and relay box |
12 A |
| F4 |
Load compartment fuse and relay box |
26 A |
| F4f44 |
Fuse 44 |
12 A |
| F4f45 |
Fuse 45 |
9 A |
| F4f46 |
Fuse 46 |
25 A |
| N10 |
Front SAM control unit |
34 L |
| N10/8 |
Rear SAM control unit |
4 A |
| N24/3 |
DC/AC converter control unit (115V socket) |
17 L |
| R3 |
Front cigar lighter (with ashtray illumination) |
25 L |
| R3e1 |
Illumination |
26 L |
| R3r1 |
Heating element |
25 L |
| U1 |
Valid for {{USA}} |
11 D |
| U656 |
Valid for interior light package |
28 H |
| U925 |
Valid for 115V socket |
13 D |
| W17 |
Ground (right rear seat) |
20 L |
| W17 |
Ground (right rear seat) |
32 E |
| W17/1 |
Ground (left rear seat) |
9 H |
| W29/2 |
Ground (right A-pillar) |
11 H |
| W7 |
Ground (right wheelhouse in luggage compartment) |
2 E |
| W7 |
Ground (right wheelhouse in luggage compartment) |
8 H |
| X18 |
Interior/cockpit connector |
12 E |
| X29/6 |
Center console intermediate connector |
24 E |
| X30/6 |
Cockpit voltage distributor (CAN) connector |
6 L |
| X58/17 |
Front interior socket |
11 L |
| X58/20 |
Right 2nd seat row socket |
9 L |
| X58/34 |
115 V socket |
14 L |
| X58/4 |
Load compartment socket |
8 L |
| Z204 |
Wake-up signal/circuit 58d voltage distributor connector |
32 L |
| Z204/3 |
Circuit 31 right rear seat voltage distributor connector |
30 A |
| Z61/4 |
Front center console circuit 31 connector sleeve |
29 L |
| Z81/8 |
Front center console circuit 58d connector sleeve |
30 L |
