Transfer case as-built configuration - GF28.00-P-0800B

MODEL 463 up to 31.8.08 with TRANSFER CASE 750.65

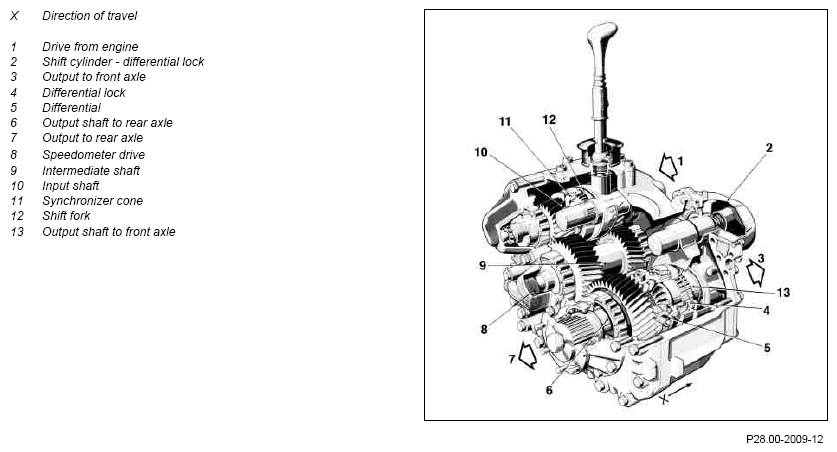

Fig 1: Identifying Transfer Case Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Gear ratios "i"

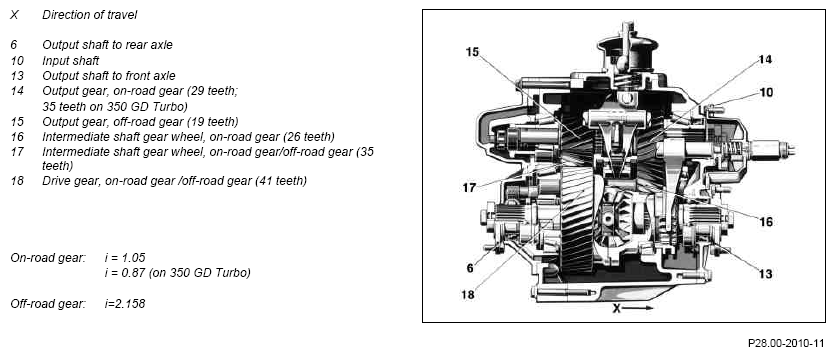

Fig 2: Identifying Transfer Case Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA
