Transfer case (VG), block diagram - GF28.10-P-0002-08G

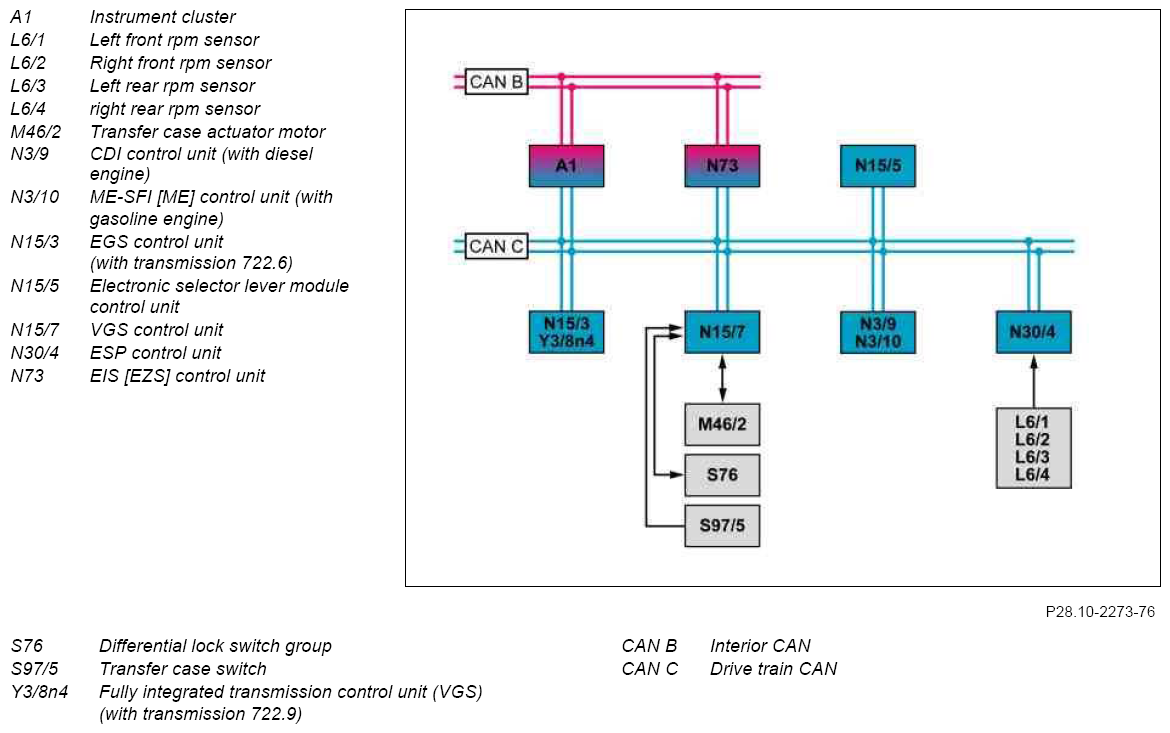

Fig 1: Transfer Case Block Diagram

G07889573

Courtesy of MERCEDES-BENZ USA
