RPM sensor, location - GF27.19-P-5115-01GB

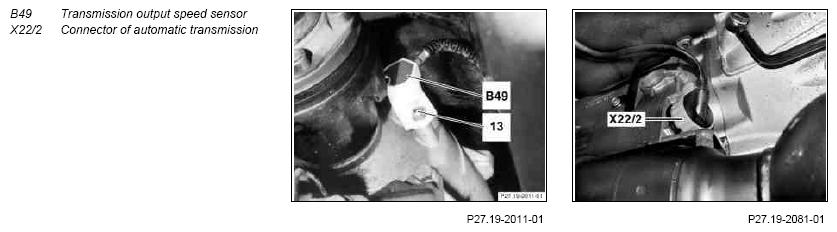

Fig 1: Identifying Transmission Output Speed Sensor And Connector Of Automatic Transmission

G07712844

Courtesy of MERCEDES-BENZ USA
