Power flow in 6th gear, function - GF27.10-P-3021GGA

TRANSMISSION 722.902 in MODEL 463.306/336/346 up to 31.5.12 as of Model Year 2011/YoM 10

TRANSMISSION 722.904 in MODEL 463.202/222/236/237 up to 31.5.12 as of Model Year 2009/YoM 08

TRANSMISSION 722.902 in MODEL 463.303/340/341 up to 31.5.12 as of Model Year 2009/YoM 08

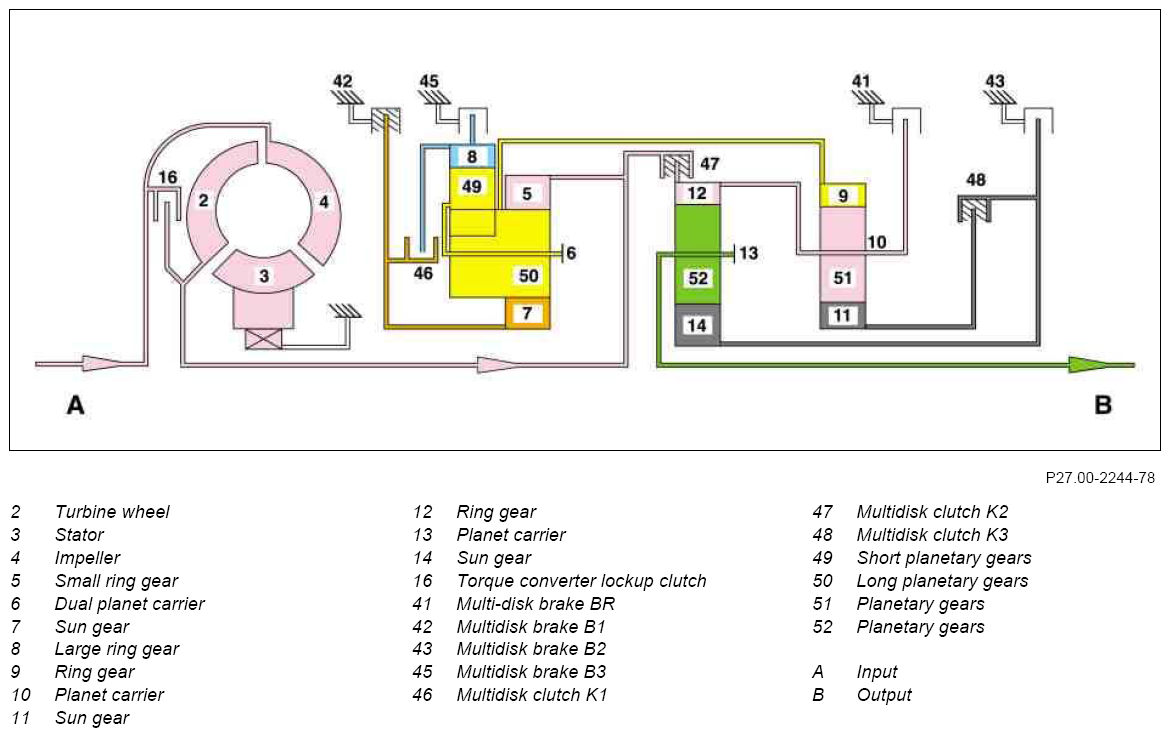

Fig 1: Sixth Gear Power Flow Function Diagram

Courtesy of MERCEDES-BENZ USA

Function requirements for power flow in 6th gear, general

Circuit 87 ON
Circuit 61 ON

Power flow in 6th gear, general

The following multi-disk brakes and multi-disk clutches are engaged:

Multidisk brake B1 (42)
Multidisk clutch K2 (47)
Multidisk clutch K3 (48)

The power flow in 6th gear takes place via the following gear sets:

Ravigneaux gear set
Rear single planetary gear set
Front single planetary gear set

Ravigneaux gear set

The small ring gear (5) is driven via the transmission input shaft. The long planetary gears (50) roll over the stalled sun gear (7) and transmit the increased torque and reduced rotational speed as a result to the dual planet carrier (6).

Rear single planetary gear set

The ring gear (9) rotates at the same speed due to the mechanical connection to the dual planet carrier (6). The planetary gears (51) transmit the rotary motion to the sun gear (11). Sun gear (11) passes on the rotational speed to sun gear (14) via the closed multi-disk clutch K3 (48).

Front single planetary gear set

The transmission input torque and transmission input speed are transmitted to the ring gear (12) by the closed multi-disk clutch K2 (47). The speed difference between the sun gear (14) and ring gear (12) results in a speed increase and torque reduction.

These are passed on via the planet carrier (13) to the transmission output shaft. The transmission output shaft thus rotates with reduced transmission input speed in the direction of rotation of the engine.
