Power flow in 5th gear, function - GF27.10-P-3015GGA
TRANSMISSION 722.902 in MODEL 463.306/336/346 up to 31.5.12 as of Model Year 2011/YoM 10
TRANSMISSION 722.904 in MODEL 463.202/222/236/237 up to 31.5.12 as of Model Year 2009/YoM 08
TRANSMISSION 722.902 in MODEL 463.303/340/341 up to 31.5.12 as of Model Year 2009/YoM 08
Function requirements for power flow in 5th gear, general
- Circuit 87 ON
- Circuit 61 ON
Power flow in 5th gear, general
The following multi-disk clutches are engaged:
- Multidisk clutch K1 (46)
- Multidisk clutch K2 (47)
- Multidisk clutch K3 (48)

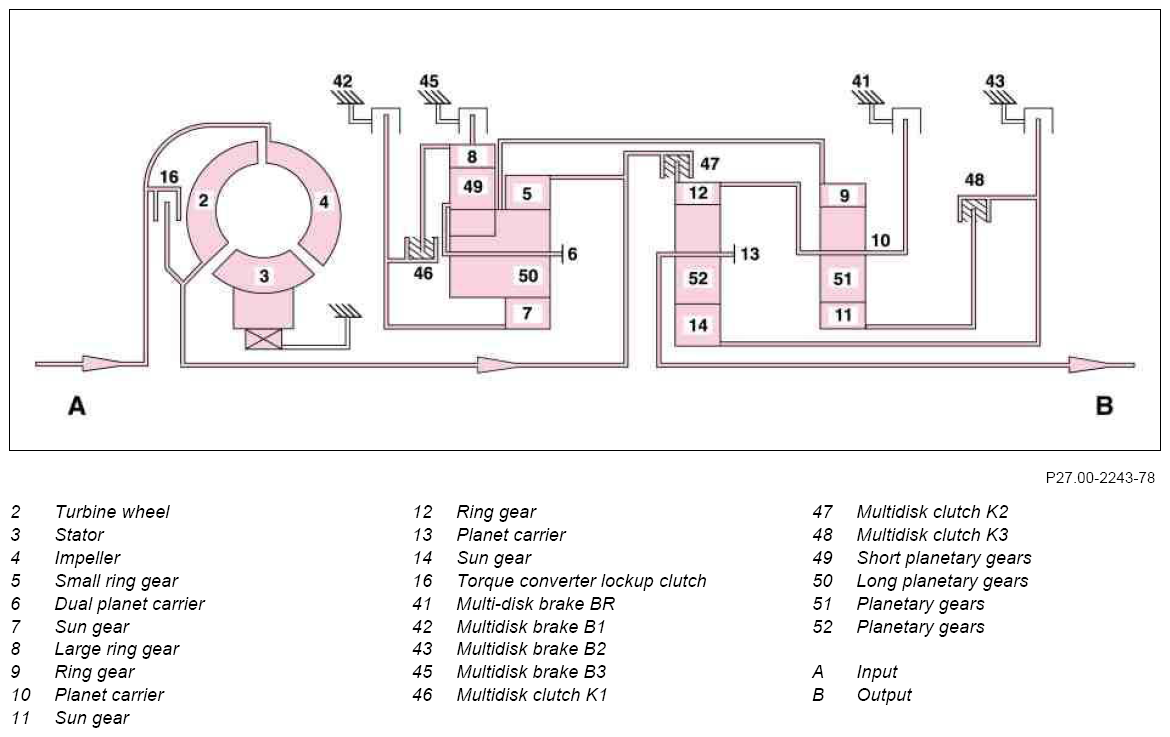

In 5th gear, power flows from the transmission input shaft through the blocked Ravigneaux gear set and blocked front single planetary gear set to the transmission output shaft. This rotates at the transmission input speed in the direction of rotation of the engine.
