Transmission Basic Knowledge -- G-Class (463)
>>
Basic Knowledge
>>
Automatic transmission (AT), location of mechanical parts - GF27.10-P-0001-07GGA
Automatic transmission (AT), location of mechanical parts - GF27.10-P-0001-07GGA

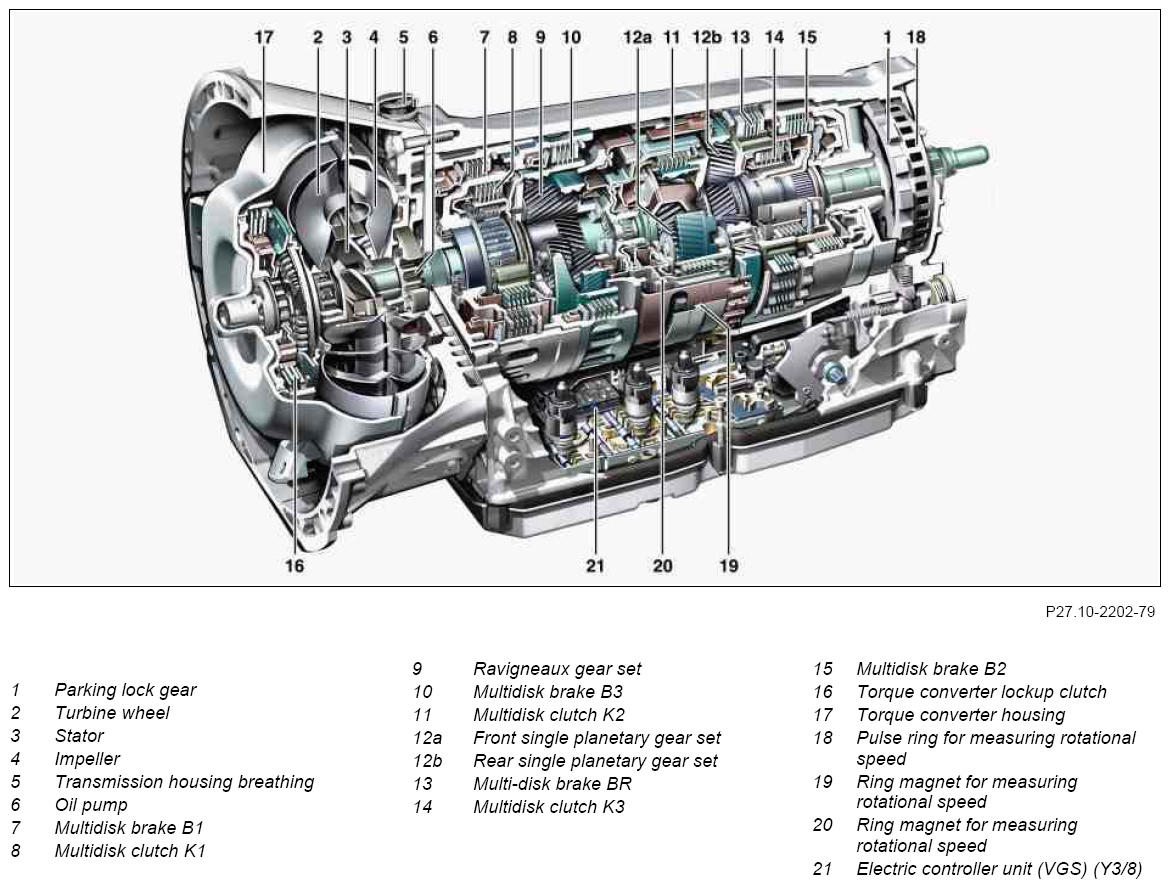

Sectional view of automatic transmission
Fig 1: Locating Automatic Transmission Components
Courtesy of MERCEDES-BENZ USA
Courtesy of MERCEDES-BENZ USA
