Automatic transmission (AT), location of hydraulic components - GF27.10-P-0001-09GGA

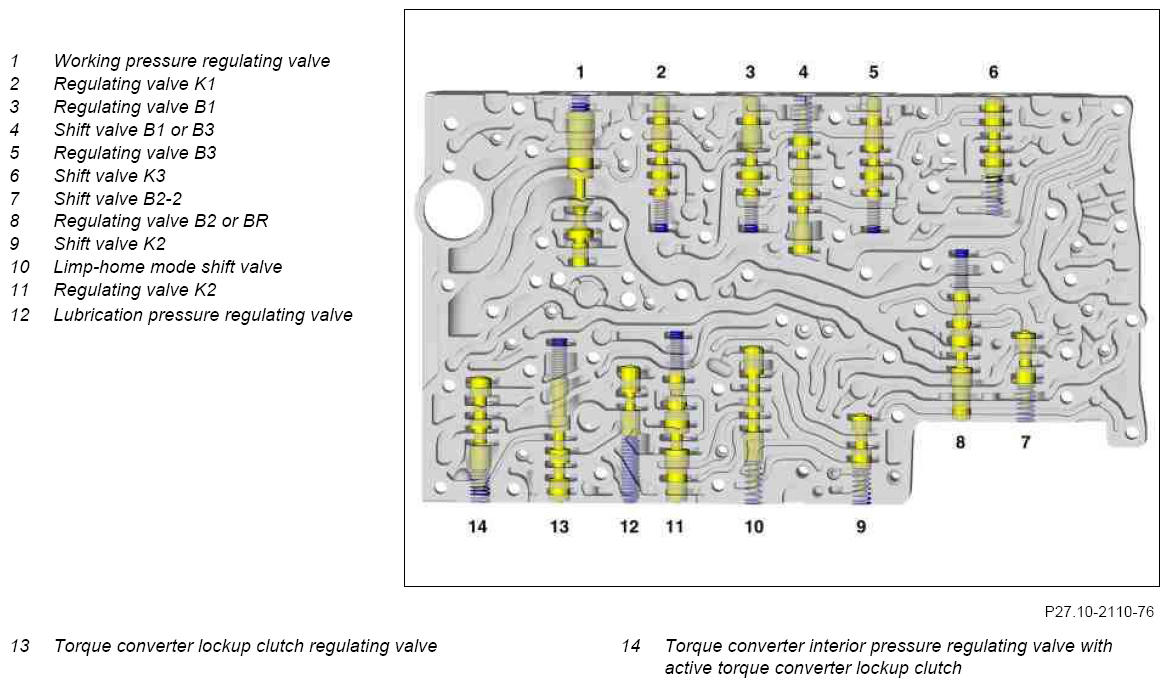

Top view of valve body

Fig 1: Locating Automatic Transmission Hydraulic Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

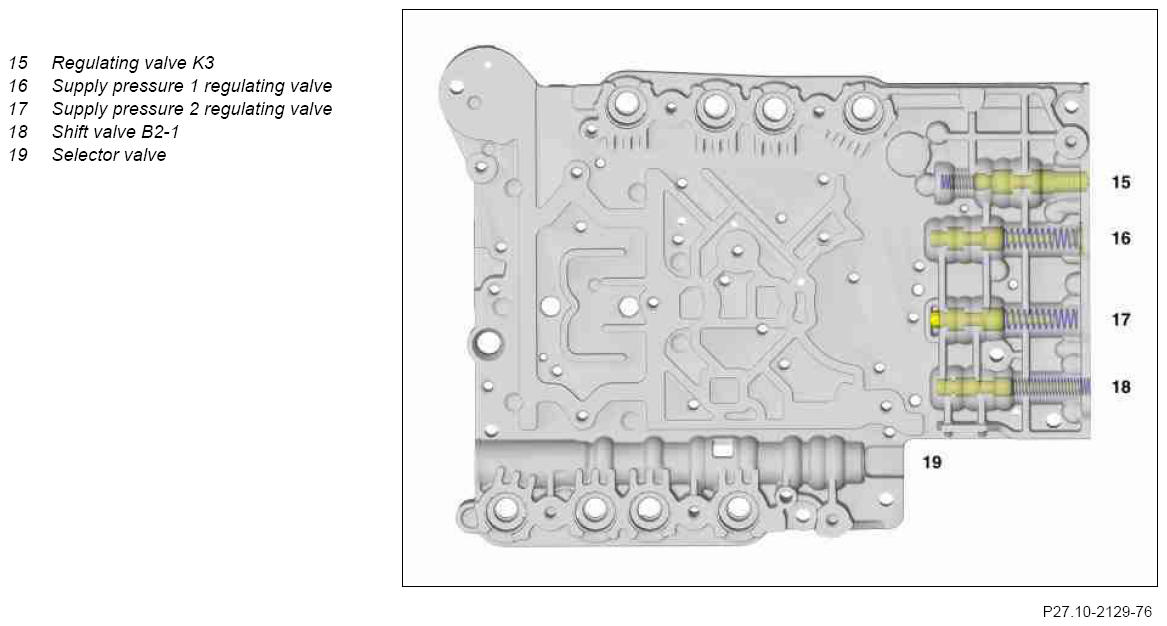

Top view of valve housing

Fig 2: Locating Automatic Transmission Hydraulic Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA
