Automatic transmission (AT), block diagram - GF27.10-P-0001-20GGA

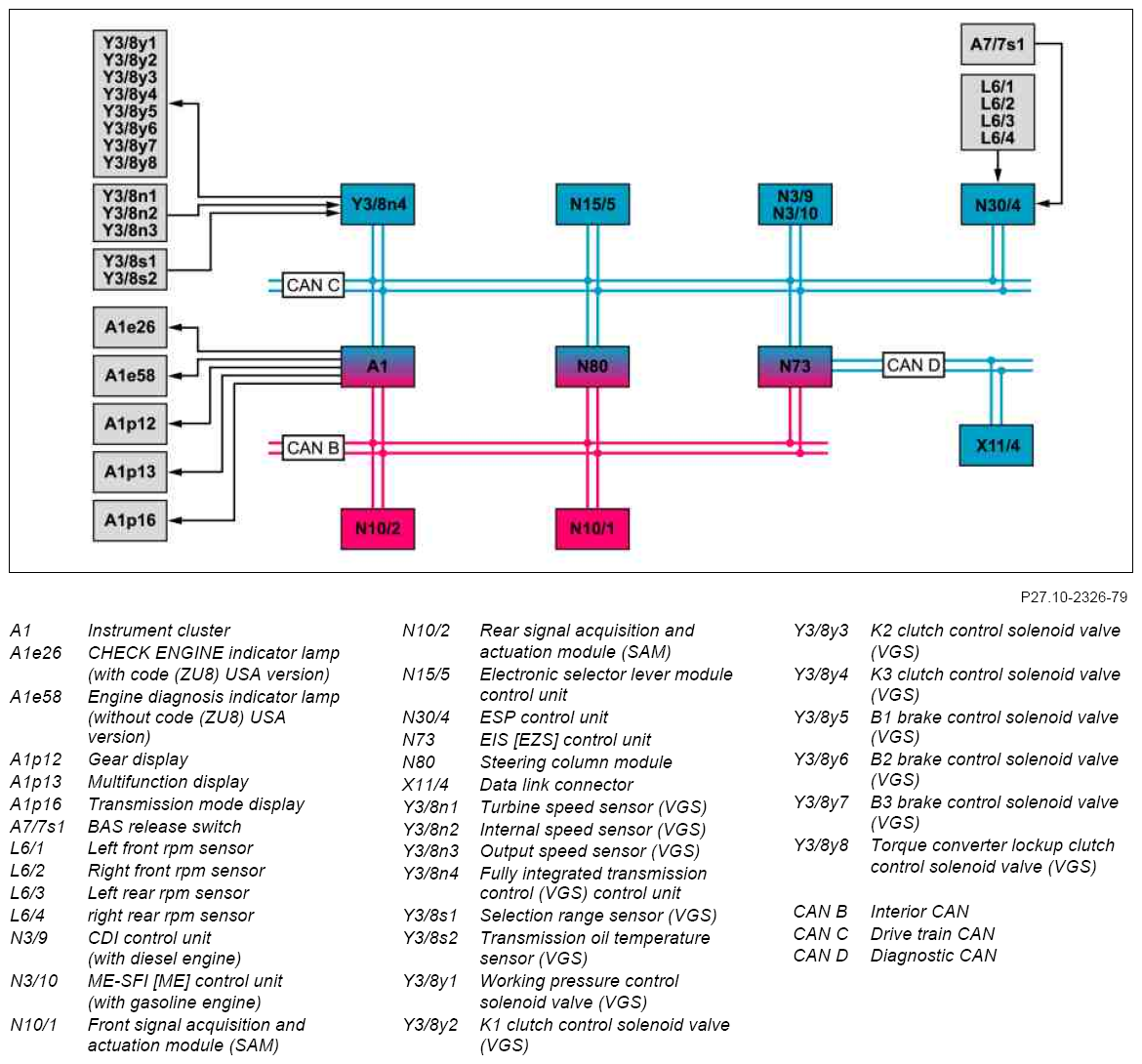

Fig 1: Automatic Transmission Block Diagram

G07890371

Courtesy of MERCEDES-BENZ USA
