Windowbag, component description - GF91.60-P-4041G
MODEL 463.346 as of model year 2011/YoM 10
MODEL 463.236/237 as of model year 2009/YoM 08
MODEL 463.248/249/270/271/341 as of model year 2007
Location

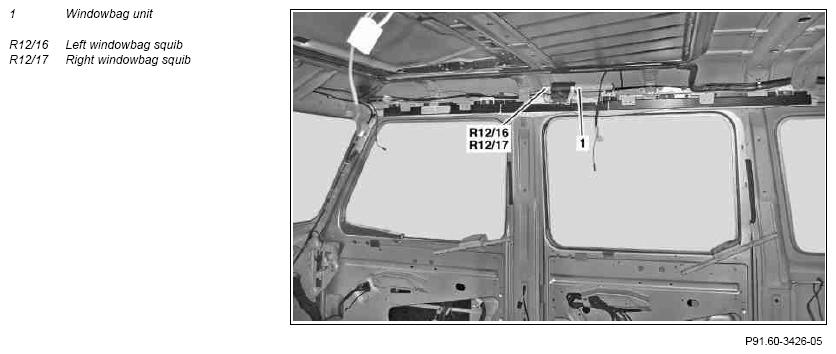

The windowbag unit is located along the left and right roof paneling beneath the headliner.
Task
The windowbag units protect the vehicle occupants from injury in the event of a side impact in the area of the windows from the A-pillar to the C-pillar.
Deployment takes place by means of ignition of the relevant squib by the restraint systems control unit (N2/7).
