Seats & Restraints -- Basic Knowledge -- G-Class (463) - 2 Of 2
>>
Basic Knowledge
>>
Supplemental restraint system (SRS), location of components - GF91.60-P-0002-01GA
Supplemental restraint system (SRS), location of components - GF91.60-P-0002-01GA

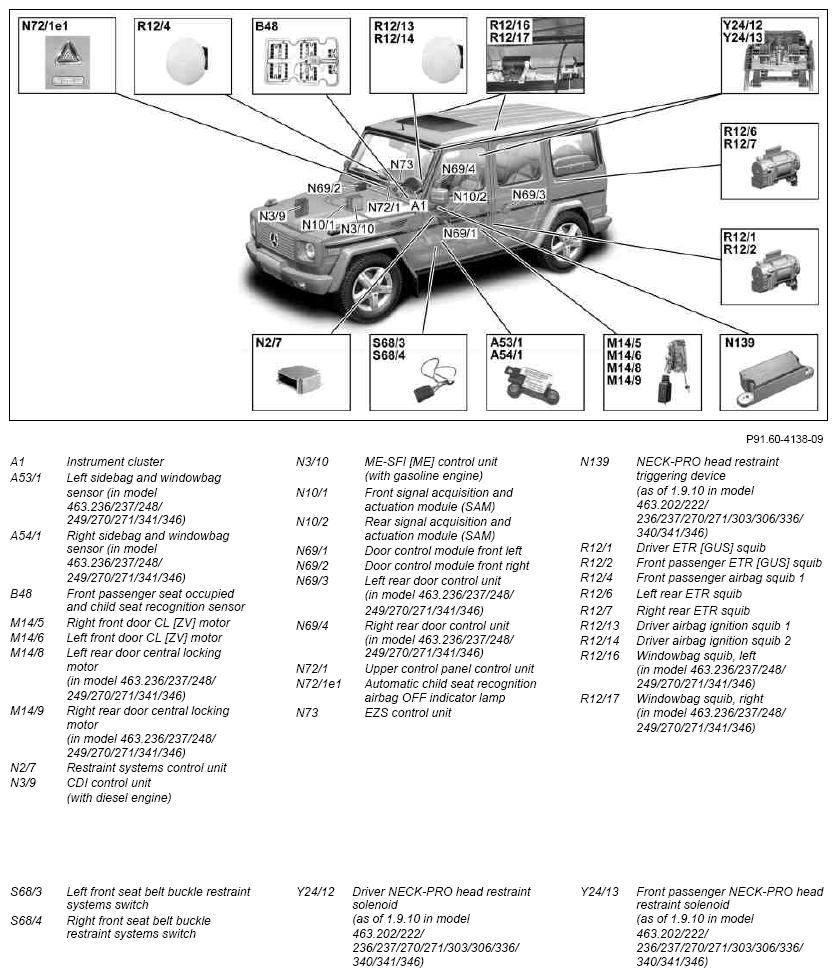

Fig 1: Locating Supplemental Restraint System (SRS) Components
Courtesy of MERCEDES-BENZ USA
Courtesy of MERCEDES-BENZ USA
