Supplemental restraint system (SRS), block diagram - GF91.60-P-0002-03G

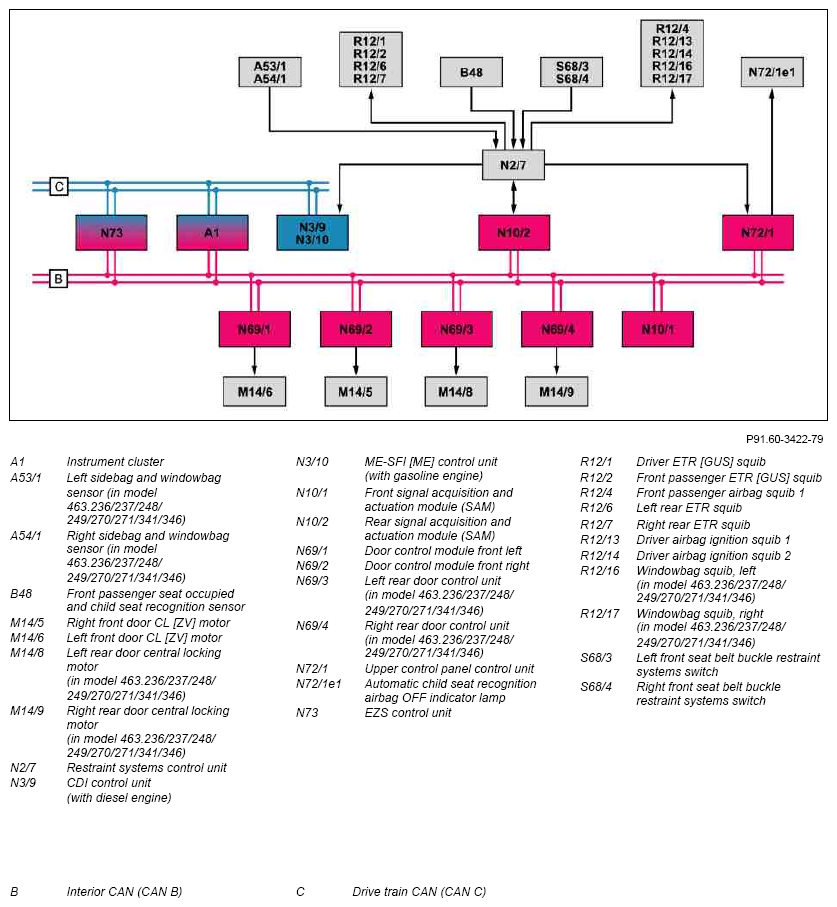

Fig 1: Supplemental Restraint System (SRS) Block Diagram
G07742389Courtesy of MERCEDES-BENZ USA

Crash-active NECK-PRO head restraint, as of 1.9.10 in model 463.202/222/236/237/270/271/303/306/336/340/341/346

Fig 2: Crash-Active NECK-PRO Head Restraint Flow Diagram
G07742390Courtesy of MERCEDES-BENZ USA
