Sidebag sensor, component description - GF91.60-P-4034G
MODEL 463.346 up to 31.5.12 as of model year 2011/YoM 10
MODEL 463.236/237 up to 31.5.12 as of model year 2009/YoM 08
MODEL 463.248/249/270/271/341 up to 31.5.12 as of model year 2007

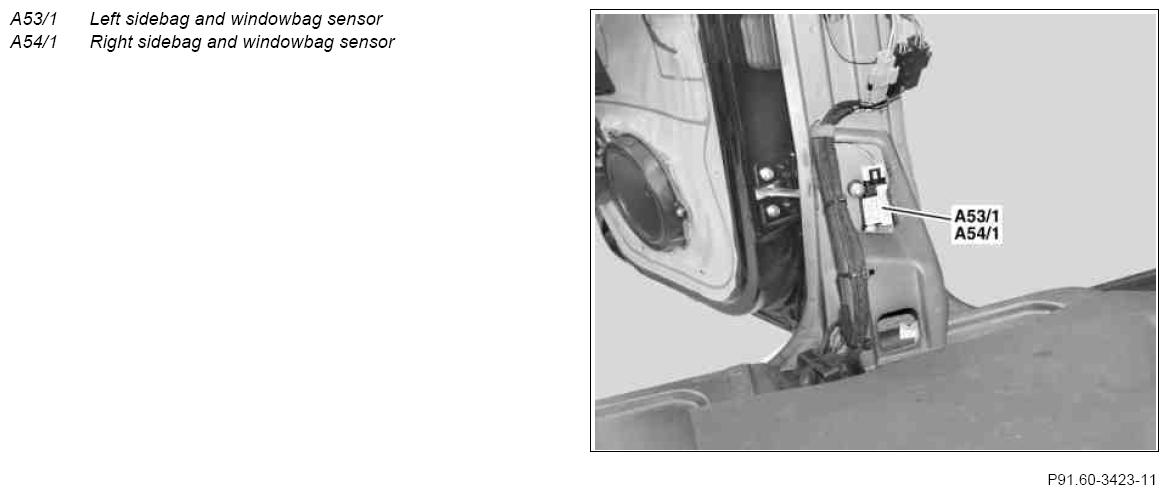

Location
The sidebag sensors and windowbag sensors are each located on the left and right underneath the cover on the B-pillar.
Task
The sidebag sensors and windowbag sensors determine the acceleration values in the area of the B-pillar. They are used to detect a side impact early on. The sidebag sensors and windowbag sensors are read in discretely by the restraint systems control unit (N2/7).
