Rear seat heater switch, component description - GF91.30-P-5213G
MODEL 463.306/336/346 with CODE (H11) Rear bench seat heater as of model year 2011/YoM 10
MODEL 463.202/222/237/270/271/303/340/341 with CODE (H11) Rear bench seat heater as of model year 2009/YoM 08
MODEL 463.236 with CODE (H11) Rear bench seat heater except CODE (ZS6) Special protection version FB6 except CODE (ZS7) Special protection version FB7 as of model year 2009/YoM 08
MODEL 463.236 with CODE (ZS6) Special protection version FB6 with CODE (ZS7) Special protection version FB7 as of model year 2009/YoM 08
MODEL 463.247/248/249/254/270/271/303/340/341 up to 31.8.08 with CODE (H11) Rear bench seat heater as of model year 2007/YoM 08
Location

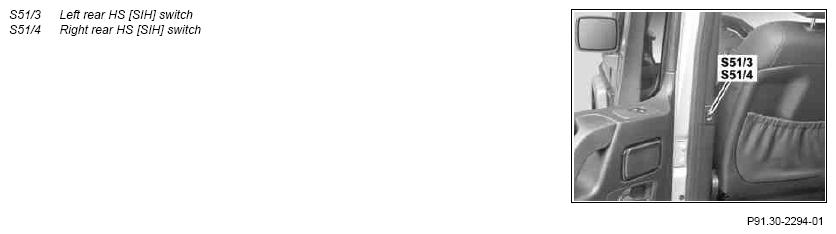

The rear SIH switches are each located at the left and right B-pillar.
Task
Manual switching on, over, and off of seat heaters for rear passengers.
The signals of the rear SIH switches are read in discretely by the rear SIH control unit (N25/6).
