Driver airbag, component description - GF91.60-P-4037G
MODEL 463.306/336/346 as of model year 2011/YoM 10
MODEL 463.202/222/236/237 as of model year 2009/YoM 08
MODEL 463.247/248/249/254/270/271/303/340/341 as of model year 2007

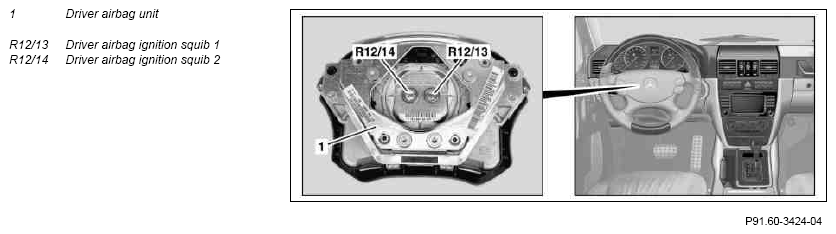

Location
The airbag unit is located in the steering wheel.
Task
The driver is protected from injury in the event of a frontal impact by the airbag unit.
The airbag unit is designed with two stages thus enabling an adjustable deployment to be achieved. Triggering is conducted by the restraint systems control unit (N2/7) igniting the squibs.
