Seat setting switch group component description - GF91.29-P-5206G

MODEL 463.306/336/346 as of model year 2011/YoM 10

MODEL 463.202/222/236/237 as of model year 2009/YoM 08

MODEL 463.247/248/249/254 up to 31.8.08 as of model year 2007

MODEL 463.270/271/303/340/341 as of model year 2007

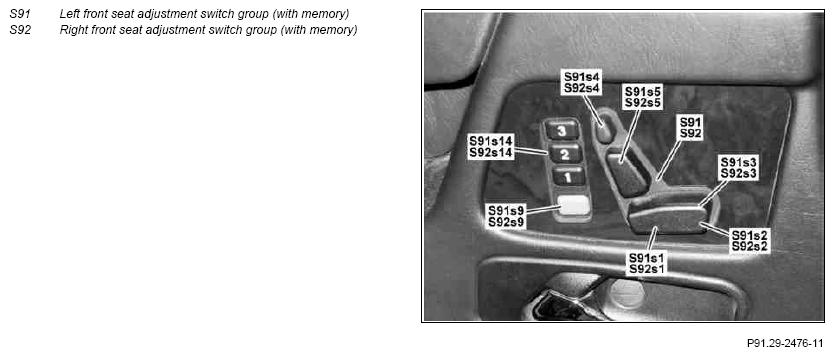

Fig 1: Locating Front Seat Adjustment Switch Groups

Courtesy of MERCEDES-BENZ USA

Location

The left/right front seat adjustment switch groups with memory are located in the front in the respective door trims.

Design of the left front seat adjustment switch group (with memory)

The following switches are integrated in the left front seat adjustment switch group (with memory):

Seat fore/aft switch (S91s1)
Seat raise/lower switch (S91s2)
Front seat raise/lower switch (S91s3)
Head restraint raise/lower switch (S91s4)
Backrest forward/back switch (S91s5)
Memory switch (S91s9)
Memory button 1, 2, 3 switch (S91s14)

Design of the right front seat adjustment switch group (with memory)

The following switches are integrated in the right front seat adjustment switch group (with memory):

Seat fore/aft switch (S92s1)
Seat raise/lower switch (S92s2)
Front seat raise/lower switch (S92s3)
Head restraint raise/lower switch (S92s4)
Backrest forward/back switch (S92s5)
Memory switch (S92s9)
Memory button 1, 2, 3 switch (S92s14)

Function

By actuating the left/right front seat adjustment switch groups with memory, the adjustment requests are transmitted voltage-coded to the
