Electric seat adjustment (ESA [ESV]), location of components - GF91.29-P-0004-01G

Shown on model 463.236 without code (ZS6) Special protection version FB6 or without code (ZS7) Special protection version FB7 and without individual rear seats

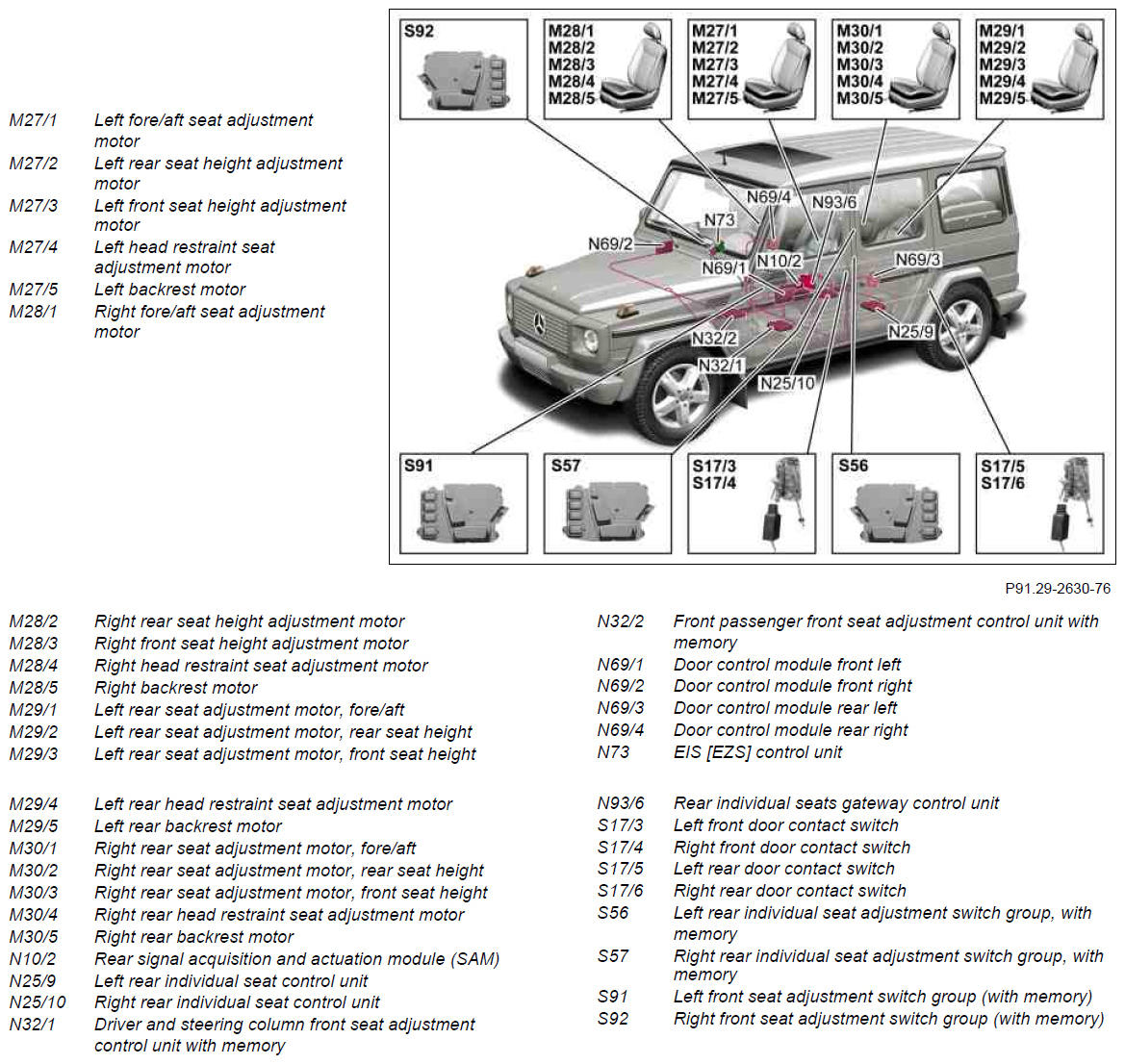

Fig 1: Locating Electric Seat Adjustment (ESA [ESV]) Components (Without Code (ZS6))

Courtesy of MERCEDES-BENZ USA

Model 463.236 with code (ZS6) Special protection version FB6 or with code (ZS7) Special protection version FB7 with individual rear seats

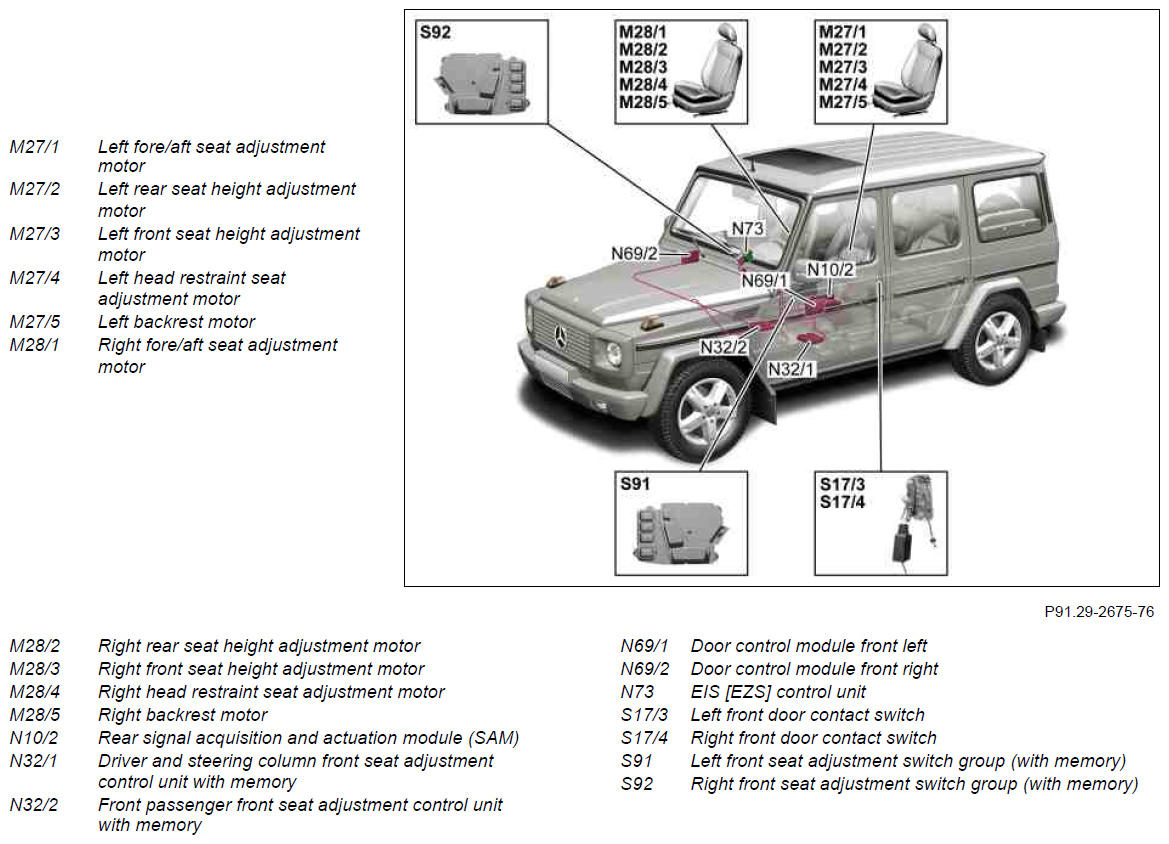

Fig 2: Electric Seat Adjustment (ESA [ESV]) Components Location (With Code (ZS6))

Courtesy of MERCEDES-BENZ USA
