Component description of passenger-side front seat adjustment control unit with memory - GF91.29-P-5224G

MODEL 463.306 /336 /346 up to 31.5.12 as of model year 2011/YoM 10

MODEL 463.202 /222 /236 /237 /270 /271 /303 /340 /341 up to 31.5.12 as of model year 2009/YoM 08

Shown up to 31.8.09

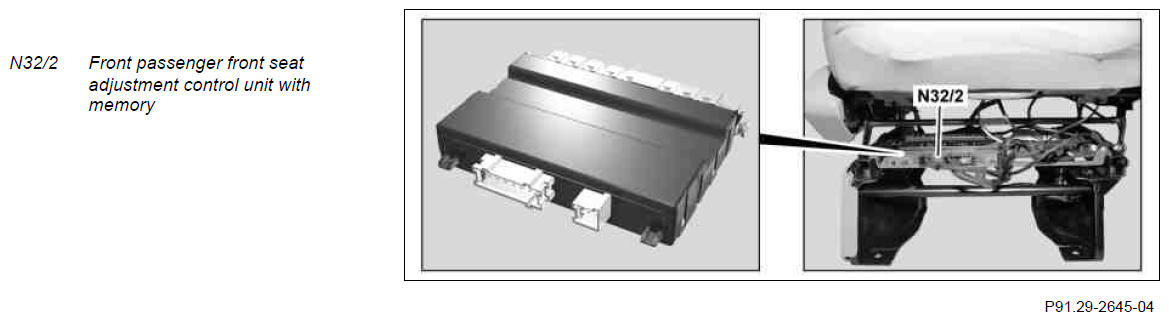

Fig 1: Locating Passenger Front Seat Adjustment Control Unit With Memory

Courtesy of MERCEDES-BENZ USA

Location

The front seat adjustment control unit is located underneath the seat frame of the front passenger.

Task

The front seat adjustment control unit has the following tasks:

Controlling functions

The front seat adjustment control unit controls the following functions:

Seat adjustment as per the requests via the right front seat adjustment switch group (with memory) (S92)
Recording and saving the current seat positions as well as moving to stored seat positions
Easy entry and exit feature for front passenger seat

Reading in of sensors, pickups and signals

The input factors are read in via the following connections:

Direct line

The signals from the following components are read via a direct line:

Right fore/aft seat adjustment motor (M28/1) Hall sensors
Right rear seat height adjustment motor (M28/2) Hall sensors
Right front seat height adjustment motor (M28/3) Hall sensors
Right head restraint seat adjustment motor (M28/4) Hall sensors
Right backrest motor (M28/5) Hall sensors

Interior CAN

The signals are read in by the front seat adjustment control unit via interior CAN.

The functions resulting therefrom are described in the corresponding function description (see block diagram or function schematic).

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.

Component actuation

Components are actuated with the following line:

Direct line

The following components are actuated via a direct line:
