Block diagram of electric seat adjustment (ESA [ESV]) - GF91.29-P-0004-03G

Model 463.236 without code (ZS6) Special protection version FB6 or without code (ZS7) Special protection version FB7 and without individual rear seats

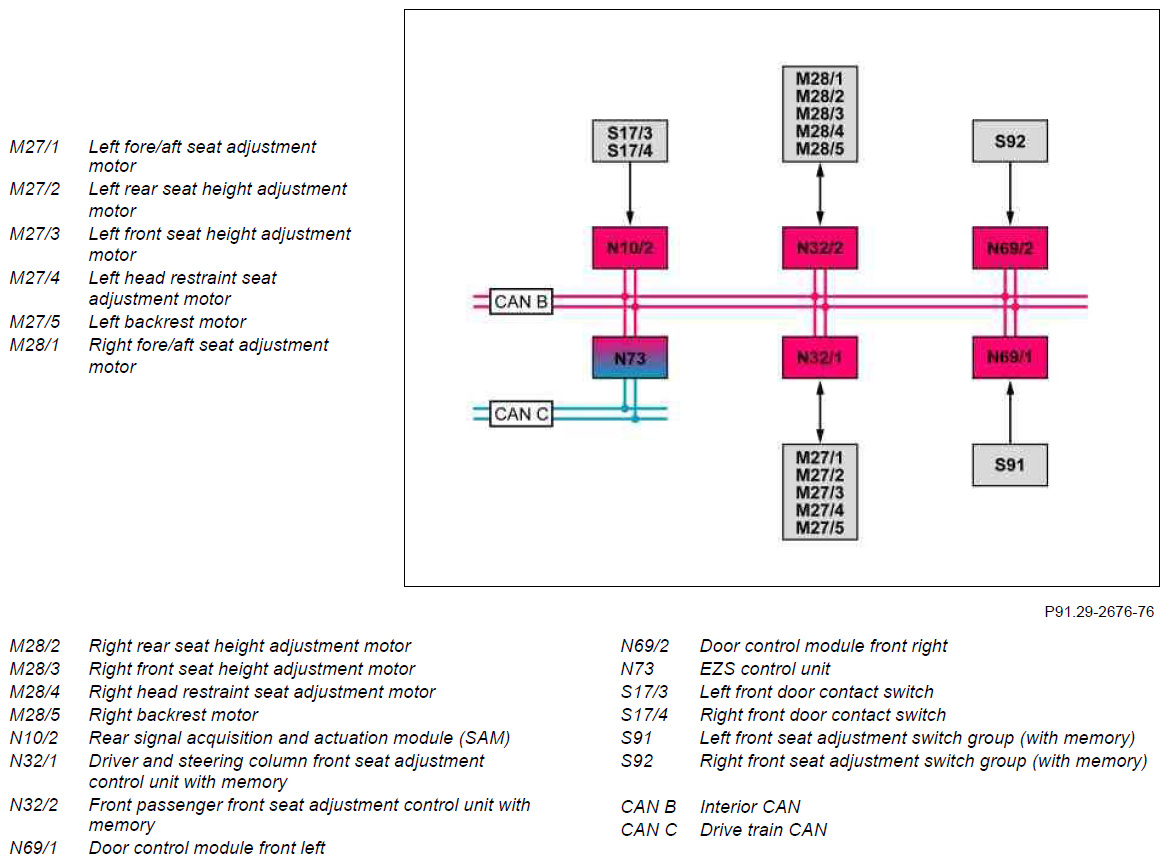

Fig 1: Block Diagram Of Electric Seat Adjustment (Without Code ZS6)

Courtesy of MERCEDES-BENZ USA

Model 463.236 with code (ZS6) Special protection version FB6 or with code (ZS7) Special protection version FB7 with individual rear seats

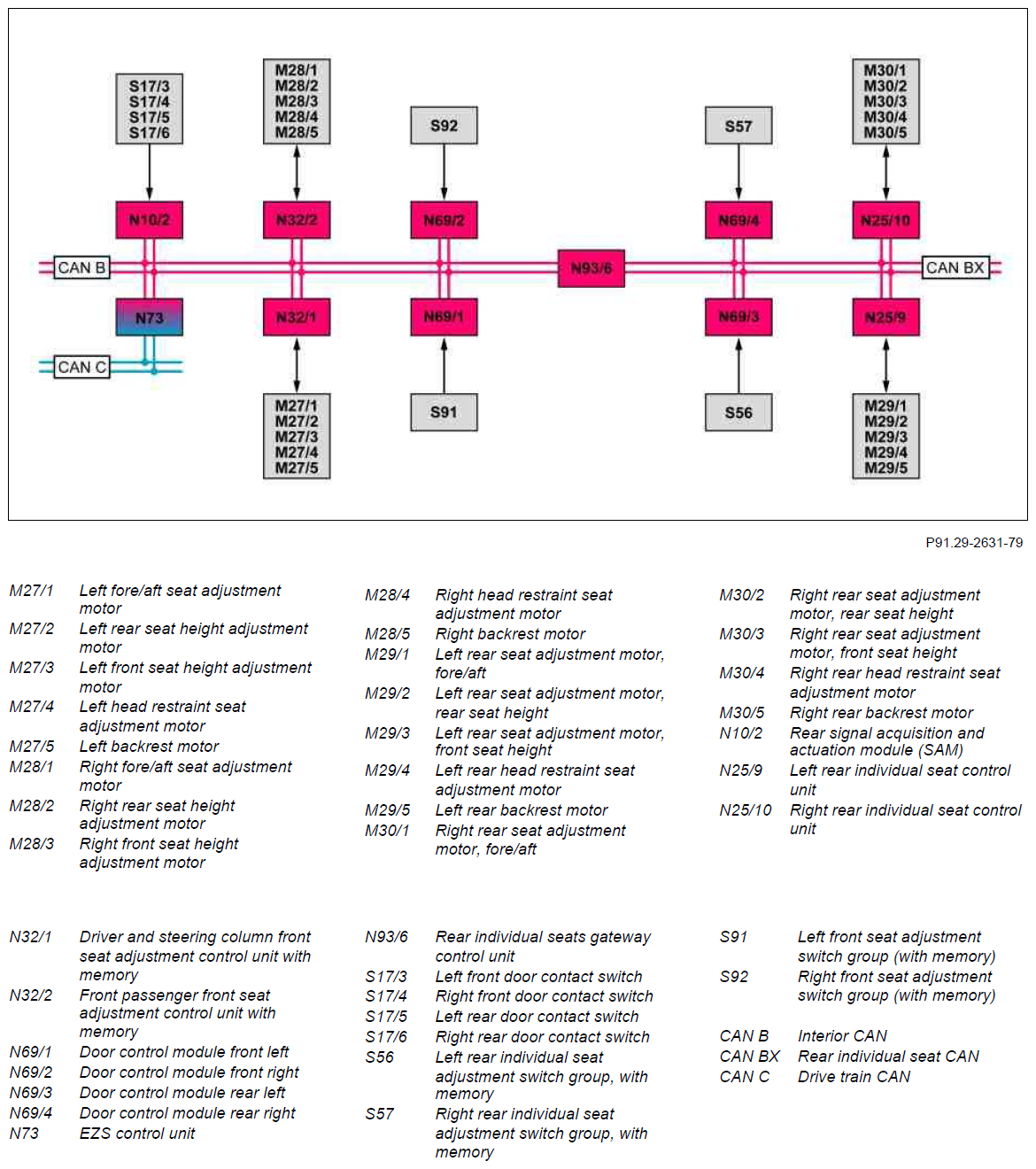

Fig 2: Block Diagram Of Electric Seat Adjustment (With Code ZS6)

Courtesy of MERCEDES-BENZ USA
