Stationary heater (STH), location of components - GF83.70-G-0006-03A

Model 463 as of 01.06.94

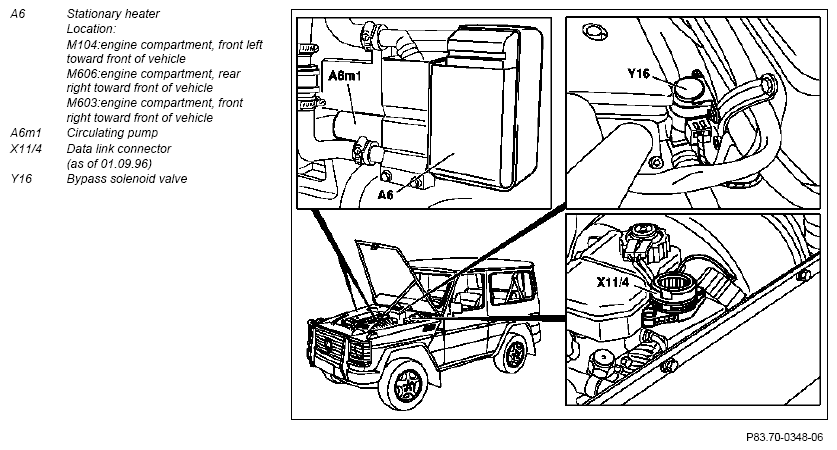

Fig 1: Locating Stationary Heater (STH) Components (1 Of 4)

Courtesy of MERCEDES-BENZ USA

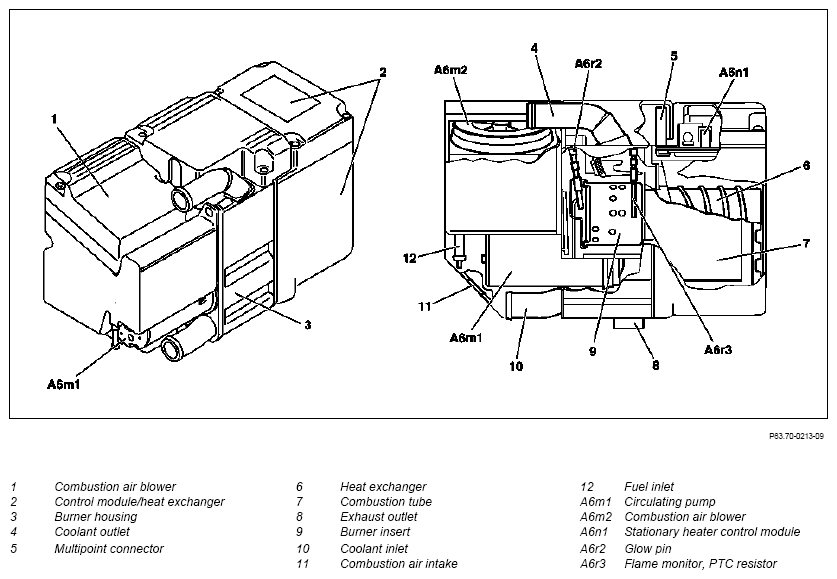

Fig 2: Locating Stationary Heater (STH) Components (2 Of 4)

Courtesy of MERCEDES-BENZ USA

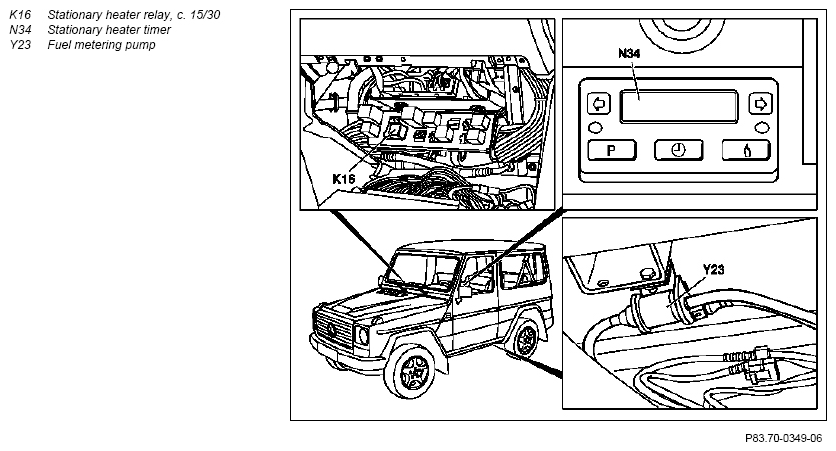

Fig 3: Locating Stationary Heater (STH) Components (3 Of 4)

Courtesy of MERCEDES-BENZ USA

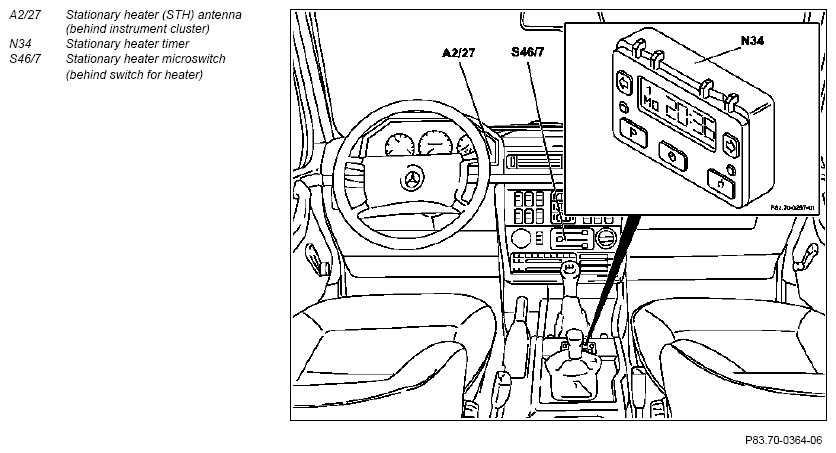

Fig 4: Locating Stationary Heater (STH) Components (4 Of 4)

Courtesy of MERCEDES-BENZ USA
