Evaporator temperature sensor, component description - GF83.57-P-2126G
MODEL 463.306 /336 /346 as of model year 2011 /YoM 10
MODEL 463.202 /222 /236 /237 as of model year 2009 /YoM 08
MODEL 463.247 /248 /249 /254 /270 /271 /303 /340 /341 as of model year 2007

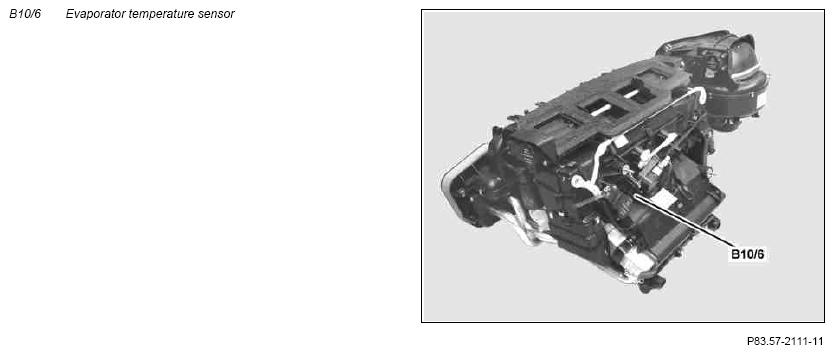

Location
The evaporator temperature sensor is located in the air flow downstream of the left evaporator in the air conditioner housing.
Task
The evaporator temperature sensor measures the air temperature immediately downstream of the evaporator. This value is read in directly by the AAC [KLA] control and operating unit (N22).
