Component description of air humidity sensor - GF83.30-P-2130G
MODEL 463.306 /336 /346 as of model year 2011 /YoM 10
MODEL 463.202 /222 /236 /237 as of model year 2009 /YoM 08
MODEL 463.247 /248 /249 /254 /270 /271 /303 /340 /341 as of model year 2007
Location

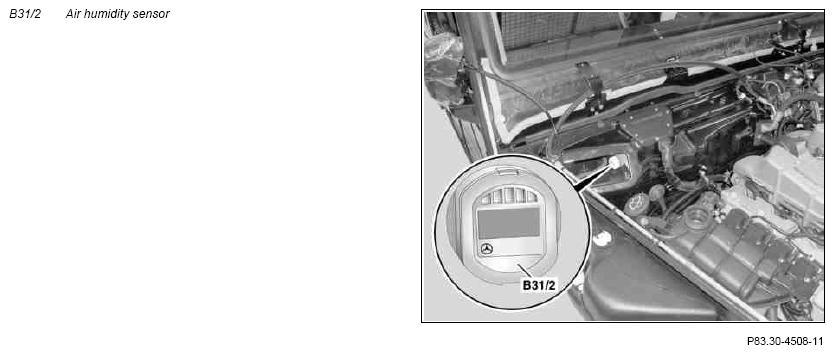

The air humidity sensor is located in the fresh air inlet of the air conditioner housing.
Task
The air humidity sensor measures the air humidity of the drawn in air. This value is read in by the AAC [KLA] control and operating unit (N22) via the AC bus.
