Automatic air conditioning, location of components - GF83.40-P-0005-01G

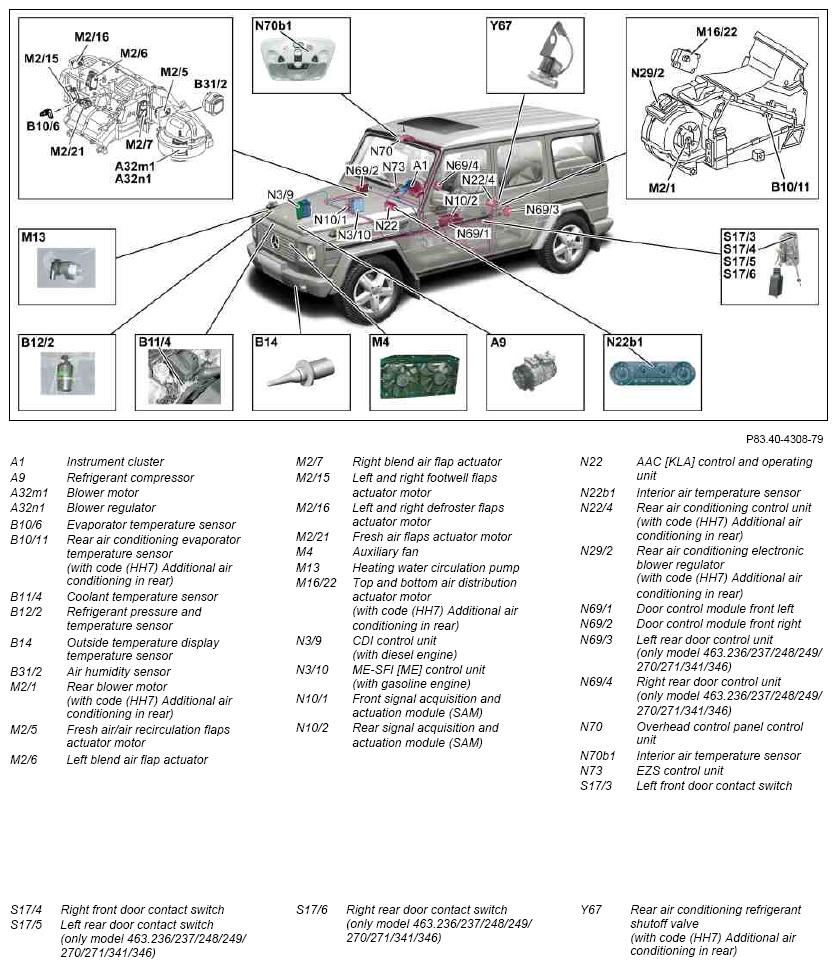

Fig 1: Locating Automatic Air Conditioning Components

G07740594

Courtesy of MERCEDES-BENZ USA
