Automatic air conditioning, block diagram - GF83.40-P-0005-02G

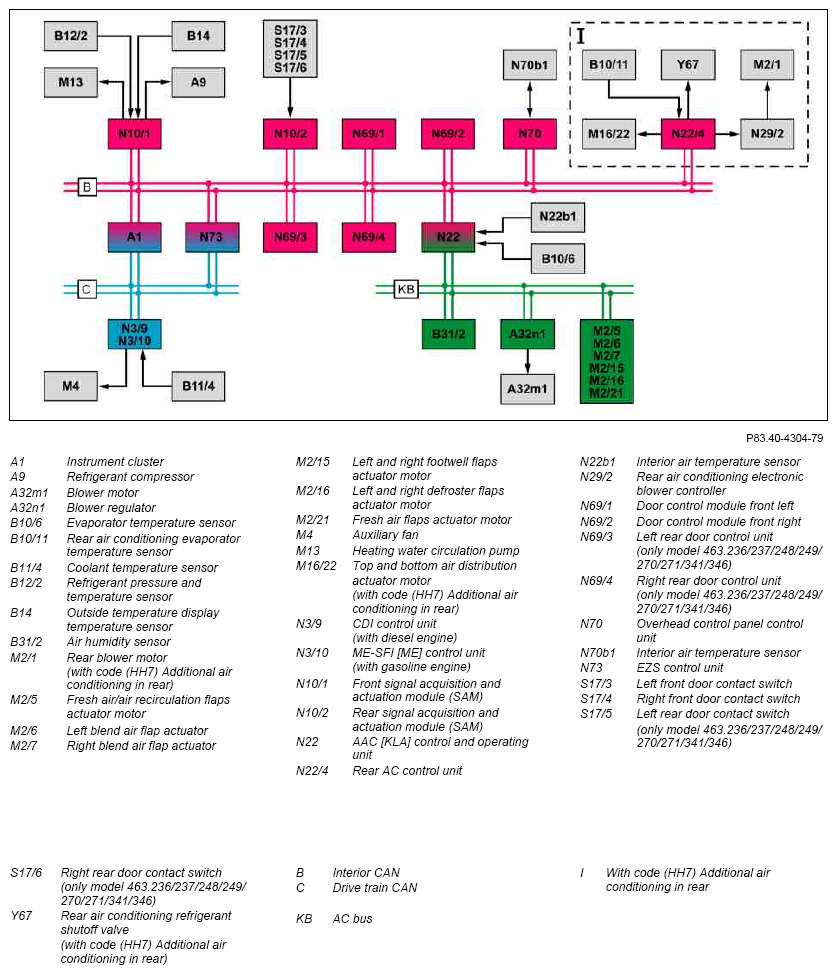

Fig 1: Automatic Air Conditioning Block Diagram

G07740595
