Automatic air conditioning actuator motors, component description - GF83.40-P-2197G
MODEL 463.306 /336 /346 as of model year 2011 /YoM 10
MODEL 463.202 /222 /236 /237 as of model year 2009 /YoM 08
MODEL 463.247 /248 /249 /254 /270 /271 /303 /340 /341 as of model year 2007
Location

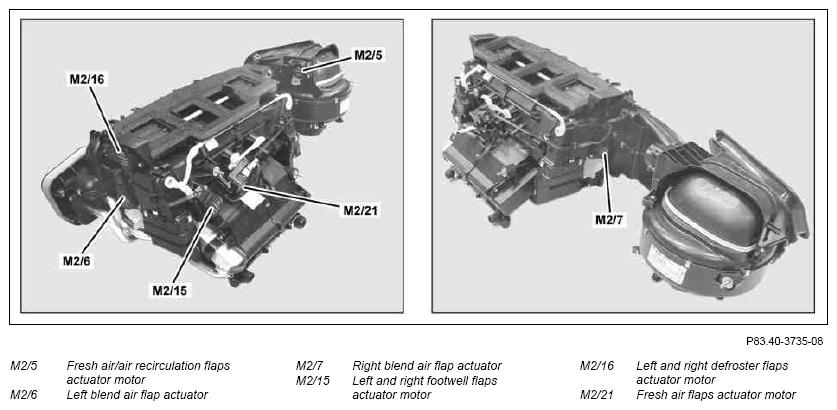

The actuator motors are located on the air conditioner housing.
Task
The actuator motors have the following tasks:
- Fresh air/air recirculation flaps actuator motor:
Operating the fresh air/air recirculation flaps to open or close the fresh air supply.
- Left blend air flap actuator motor and right blend air flap actuator motor:
Adjusting the blend air flaps to regulate the ventilation temperature in the vehicle interior.
- Left and right footwell flaps actuator motor:
Operating the footwell flaps to regulate the air flow to the front footwell and in the rear.
- Left and right defroster flaps actuator motor:
Operating the defroster flaps to regulate the air flow to the defroster vents of the windshield and the side windows.
- Fresh air flaps actuator motor:
Operating the ventilation flaps to regulate the air flow to the center vent and air vent.
The actuator motors are actuated by the AAC [KLA] control and operating unit (N22) via the AC bus.
