Motor electronics (ME-SFI) gasoline injection and ignition system, block diagram - GF07.61-P-0001-13G

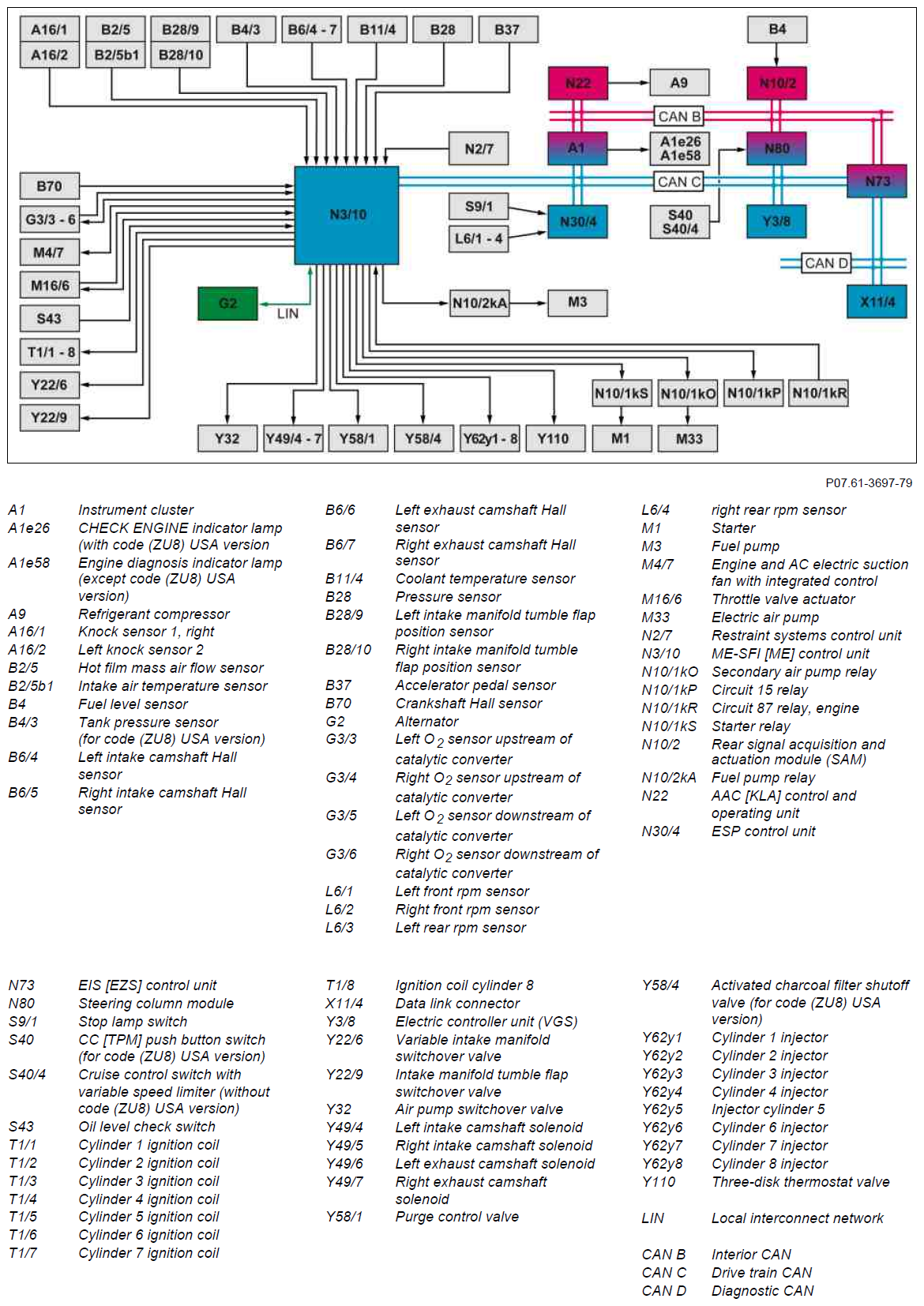

Fig 1: Identifying Motor Electronics (ME-SFI) Gasoline Injection And Ignition System, Block Diagram
G07889205Courtesy of MERCEDES-BENZ USA
