ME-SFI acceleration enrichment function - GF07.61-P-3015AM
ENGINE 113.990 in MODEL 211, 219
ENGINE 113.991 in MODEL 215, 220
ENGINE 113.992 in MODEL 230 up to Model Year 2008
ENGINE 113.993 in MODEL 463 up to 31.5.12
ENGINE 113.995 in MODEL 230 up to Model Year 2008
Dynamic enrichment prevents jerking when accelerating.
During fast opening of the throttle valve the mixture leans out briefly and is enriched briefly during fast closing of the throttle valve. This results in brief mixture adaptation in which an additional or a reduced quantity of fuel is allocated to the engine by the ME-SFI [ME] control unit depending on the performance map.
Acceleration enrichment is dependent on:
- Coolant temperature
- Engine load
- Rate of load change (rate of depressing or releasing accelerator)
- Engine speed
- Correction programming with STAR DIAGNOSIS

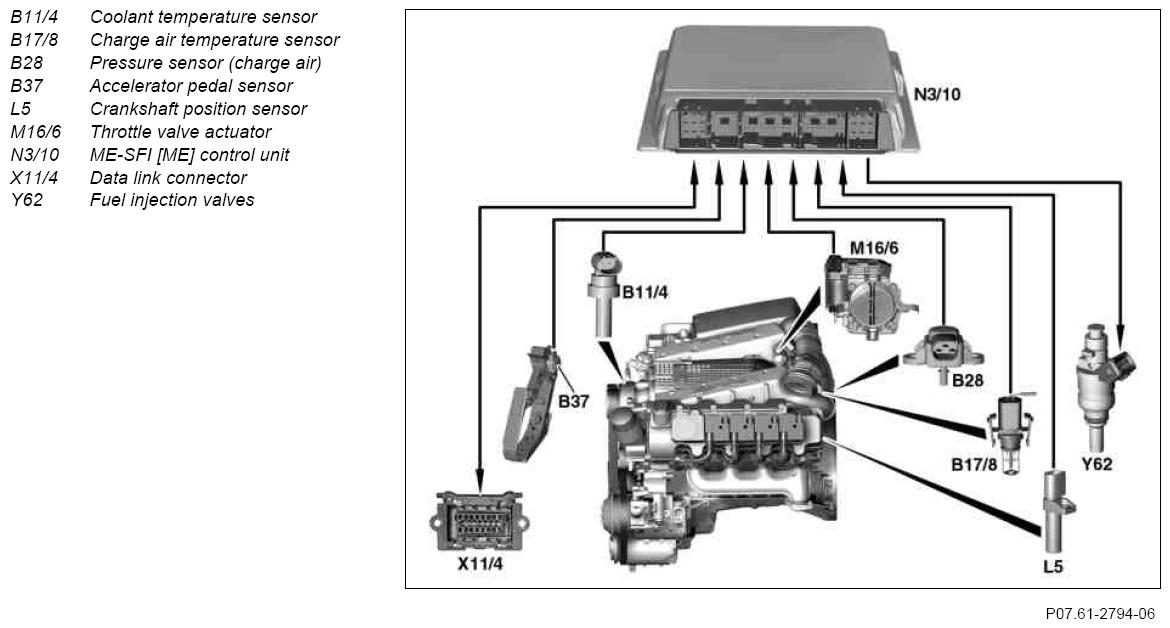

| Fuel injection valve - location/task/design/function | GF07.03-P-5004KE | ||
| Crankshaft position sensor - location/task/design/function | GF07.04-P-4116AM | ||
| Pressure sensor - location/task/design/function | GF07.04-P-5014AM | ||
| Coolant temperature sensor - location/task/design/function | GF07.04-P-5026AM | ||
| Charge air temperature sensor - location/task/design/function | GF07.04-P-5039AM | ||
| ME-SFI control unit - location/task/design/function | GF07.61-P-5000AM | ||
| Accelerator pedal sensor - location/task/design/function | GF30.20-P-4010HA | ||
| Throttle valve actuator - location/task/design/function | GF30.22-P-4101AM |
