Fuel injector, location - GF07.03-P-5004-01AM

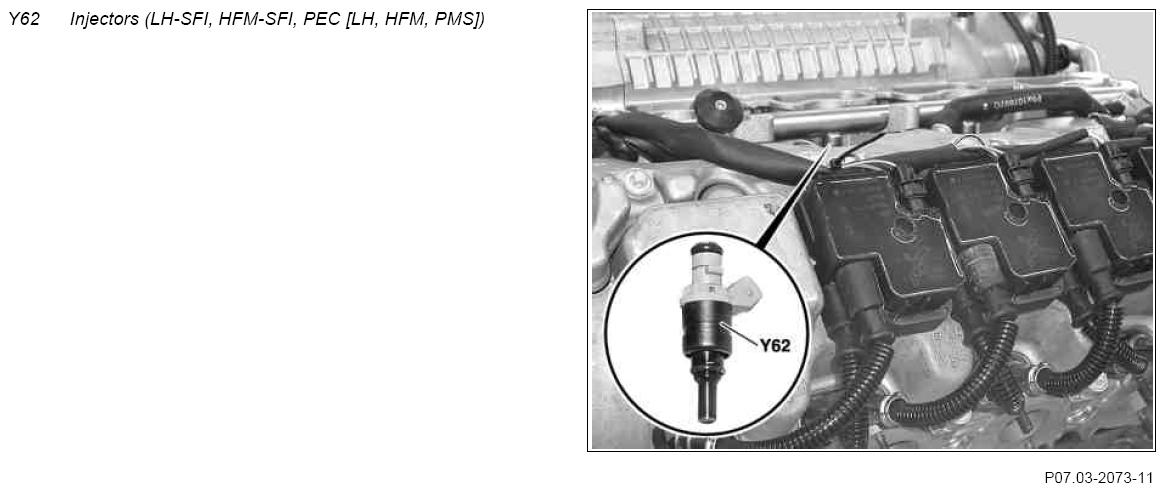

Fig 1: Identifying Injectors (LH-SFI, HFM-SFI, PEC [LH, HFM, PMS])

G07870851

Courtesy of MERCEDES-BENZ USA
