Camshaft Hall sensor position - GF07.04-P-4117-01AM

The camshaft Hall sensor is located at the front at the right cylinder head.

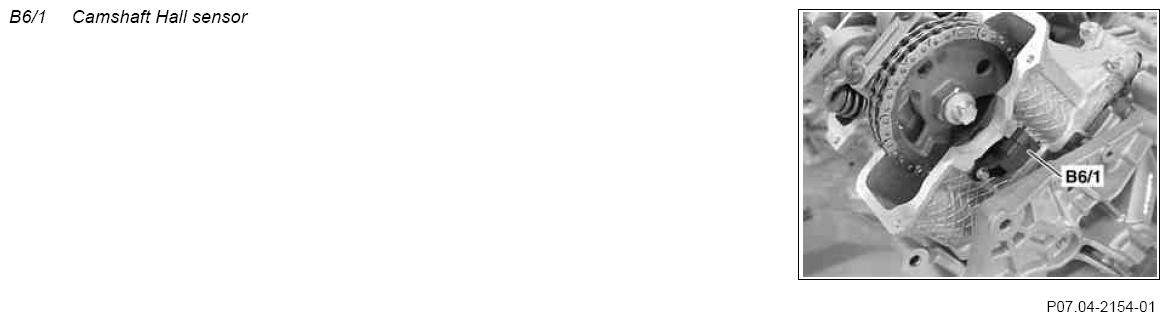

Fig 1: Identifying Camshaft Hall Sensor

G07870867

Courtesy of MERCEDES-BENZ USA
