Fuel pump design - GF47.20-P-4002-01KE
Fuel pump design - GF47.20-P-4002-01KE
Screw spindle pump

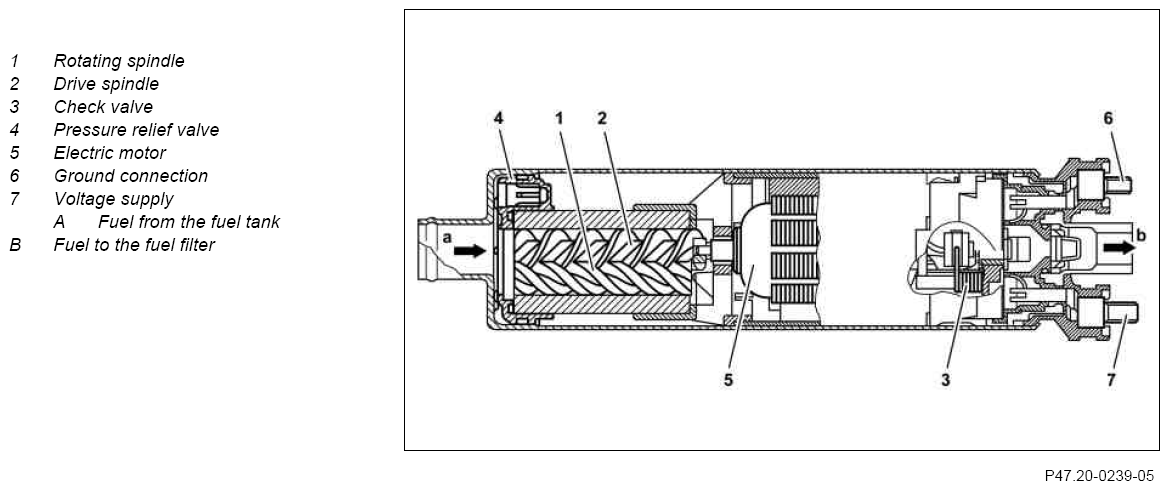

Fig 1: Identifying Design Of Fuel Pump
Courtesy of MERCEDES-BENZ USA
Two two-stage flow pumps are fitted in model 211, 219.
Courtesy of MERCEDES-BENZ USA
Two two-stage flow pumps are fitted in model 211, 219.
