Recirculated air flap actuator - position - GF09.50-P-3101-01AM

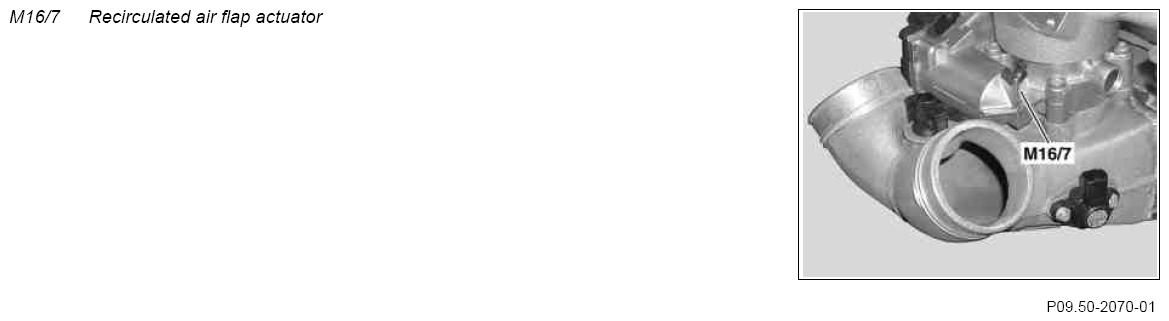

Fig 1: Identifying Recirculated Air Flap Actuator
G07871075Courtesy of MERCEDES-BENZ USA

The air recirculation flap actuator is located between the compressor input and charge air distribution pipe in the V angle of the engine.
