Magnetic clutch for the mechanical supercharger - design - GF09.50-P-3103-03AM

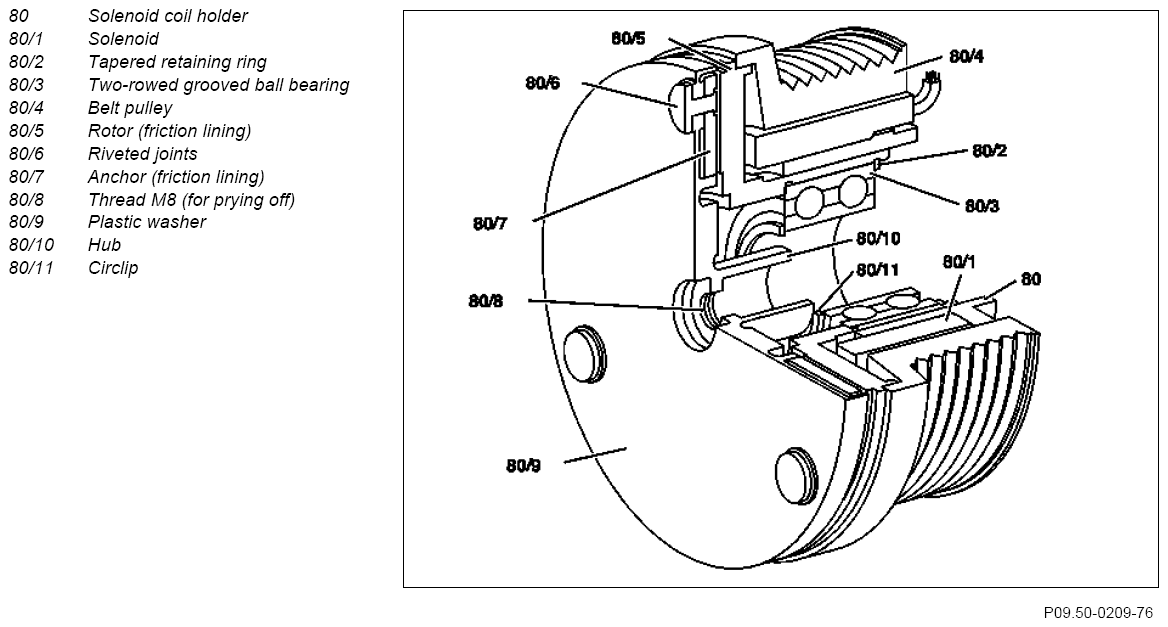

Fig 1: Identifying Design Of Magnetic Clutch For Mechanical Supercharger

Courtesy of MERCEDES-BENZ USA

There is an air gap between the rotor (80/5) and the anchor (80/7) of between 0.3 and 0.5 mm which is not under power and which cannot be adjusted.

he magnetic clutch for the mechanical supercharger (Y2/1) can only be replaced as a complete unit with the compressor.
