Location of the relay for the charge air cooler recirculation pump - GF09.41-P-3106-01GA

Model 463

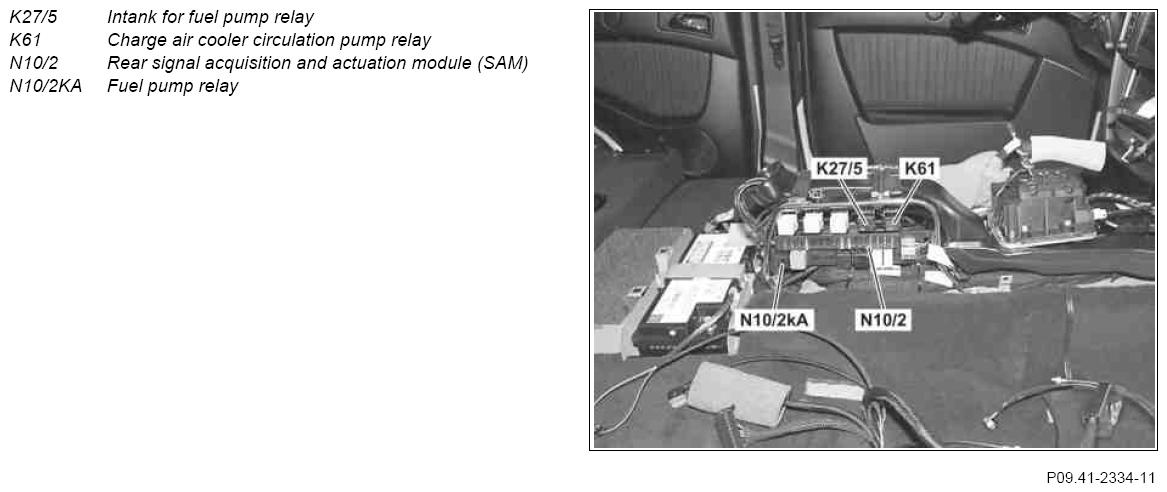

Fig 1: Identifying Charge Air Cooler Recirculation Pump Relay (Model 463)

Courtesy of MERCEDES-BENZ USA

The charge air cooler circulation pump relay is located under the center console, above on the rear signal acquisition and actuation module.
