Charge air cooling circulation pump function - GF09.41-P-3102-02AM

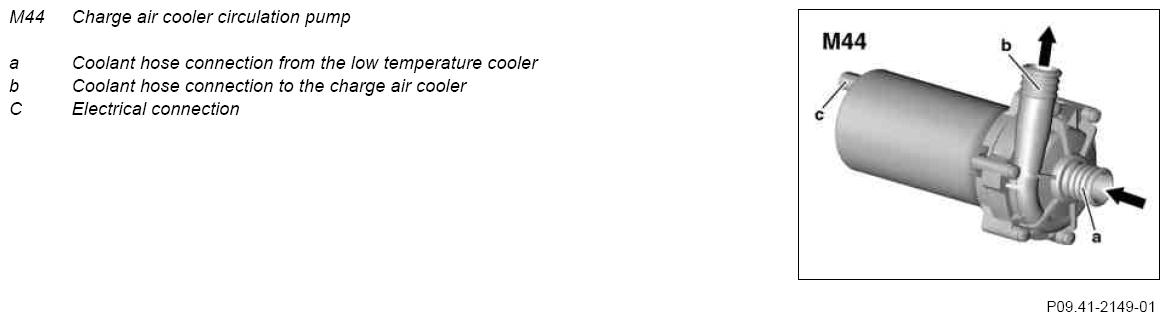

Fig 1: Identifying Charge Air Cooler Circulation Pump And Coolant Hose Connections

Courtesy of MERCEDES-BENZ USA

The charge air cooler recirculation pump is actuated by the ME-SFI [ME] control unit (N3/10) over the corresponding relay.
