Charge air cooler position - GF09.41-P-3100-02AM

The charge air cooler is located in the V angle of the engine below the compressor.

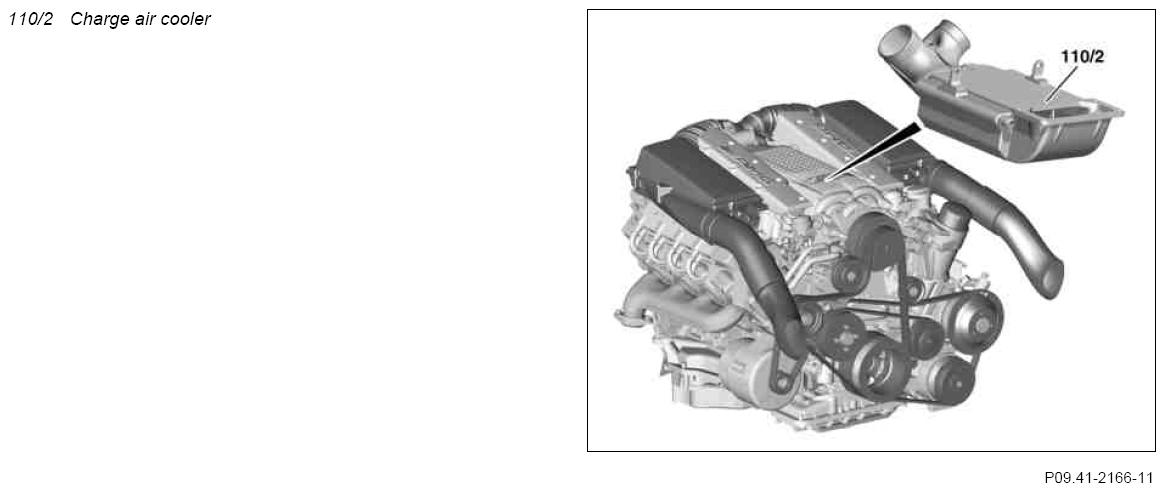

Fig 1: Identifying Charge Air Cooler

G07871060

Courtesy of MERCEDES-BENZ USA
